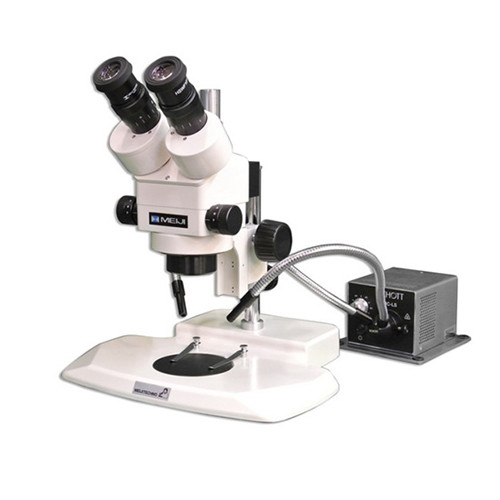

Meiji EMZ13-PK Stereo Zoom Pole Stand Dual Gooseneck Microscope

Meiji stereo microscope system EMZ13-PK provides 10x - 70x zoom magnification on a pole stand with dual gooseneck LED lights. The complete microscope system includes the following:

• Microscope Body: Select when ordering from a stereo zoom binocular or trinocular body, rotatable 360°, eyetube inclination 45°. Interpupillary distance adjustable from 54mm - 75mm. Dioptric adjustment on the left eyetube. Trinocular body directs light to right eyetube and trinocular tube simultaneously.
• Objectives: Zoom range of 1.0x - 7.0x
• Zoom Ratio: 7:1
• Zoom Control: Dual, graduated, bilateral mount
• Working Distance: 90mm
• Magnification: 10x eyepieces are included. Additional eyepieces are available for purchase separately.
• Available eyepiece magnifications: 12.5x, 15x, 20x, 30x. (All accept 25mm reticle except for 5x & 30x eyepieces).
• Supplemental objectives and eyepieces:
  • View magnification chart below for options for extending WD and magnification.
  • Extended Magnification Range: 3x - 315x
  • Extended Working Distances: 48mm - 230mm
• Microscope Stand: Pole microscope stand has base dimensions of 330mm (13") x 265mm (10.4"). The stand height is 280mm (11"). The pole diameter is 20mm. The stand includes stage clips and a reversible black/ white stage plate with a diameter of 94.5mm.
• Focusing Holder: Rack and pinion mount allows for smooth, precise coarse focusing.
• Illumination: Includes a SCHOTT MC-LS Light box with dual pipe lights. The 2-branch gooseneck pipe lights measure 584mm (23").
• Warranty: Meiji Techno warrants the microscope body against defects in material and/or workmanship for the life of the instrument from the date of original purchase to the original purchaser.

EMZ13B-PK, EMZ13T-PK
