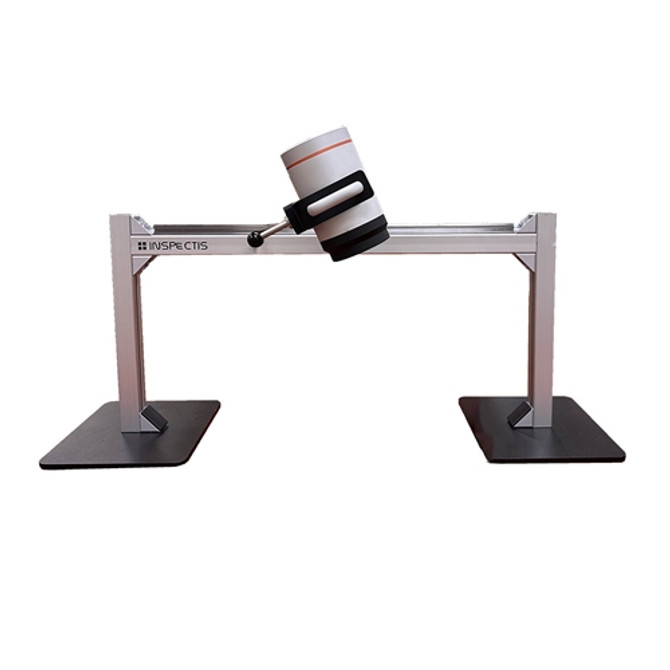

Inspectis U30s 4K Pro Metrology Gantry System

Inspectis U30s 4K Pro Metrology Gantry System

No reviews yet Write a Review

The Inspectis U30s 4K Pro Metrology gantry system with Inspectis Pro Software features the U30s 4K Ultra HD digital microscope with 30:1 motorized zoom on an in…

SKU:

$17,599.00 - $18,548.00

Hurry up! Current stock:

Request a quote

Description

The Inspectis U30s 4K Pro Metrology gantry system with Inspectis Pro Software features the U30s 4K Ultra HD digital microscope with 30:1 motorized zoom on an industrial grade XY travel table top gantry stand, 27" 4K monitor, computer, and full 4K HD HDMI USB3.0 image capture device. This system includes Inspectis Pro Software with functions for advanced measurement, overlay 2D scale on live image, and overlay semi-transparent image on to a live image. Explore more features of Inspectis Pro Software.

Video Output: 4K Ultra HD 2160p/30 fps switchable to FHD 1080p/60pfs
Imager: 8.5 MP, 3840(H) x 2160(V) 16:9 format. Progressive scan CMOS image sensor
Pixel Size: 1.62µm x 1.62µm
Lens: High resolution motorized 30:1 zoom range with auto focus, iris control and pre-calibrated optics with automatic zoom tracking.
Camera and lens control: Iris, Zoom, Auto Focus on/off, white balance. Optional Inspectis 2 Pedal Foot Switch and Inspectis Advanced Camera Remote Control can be purchased for hands free control of the camera. Hands free control requires both of these products.
Environmental Protection: Camera housing is hermetically sealed to prevent entry of dust or other contaminates. ESD protection built-in to camera housing.
Capture Device: USB image and video capture device for recording and storing images and videos.
Illumination: Inspectis White LED Ring Light with 8 high power LEDs with 5800 K color temperature and detachable diffuser. Illumination controls for soft, smooth light adjustment. The ring light is powered directly through the AUX output of the Inspectis digital microscope.
Stand: Industrial grade XY travel table top gantry stand available in two sizes with optional 4 direct tilt attachment:
- Standard: X-travel 100mm - 750mm / Y-travel 100mm - 550mm
- Long range Y- travel: X-travel 100mm - 750mm / Long range Y-travel 551mm - 800mm.
- Optional 4 direction tilt unit for +/- 30º slope angels. Designed for side viewing of samples.
- Larger stand sizes and Motorized options are available. Contact Microscope World for details.
Computer / Monitor: Computer with 27" 4K monitor with 3840 x 2160 resolution.
Software: Inspectis Pro Software includes all functions of Inspectis Basics Software plus:
- Overlay semi-transparent image to live image
- Advanced measurement: free-form area, length and perimeter measurement
- Measurement of circle, angle, curve, polygon
- Compare live and still images
- Overlay 2D scale on live image
- Report generator with included images and measurements
- Export measurements as TXT or Excel files
- Record video with audio
Input / Output: HDMI video output, 5PMiniDin power input, 8P MiniDin for communication.
Manufactured in Sweden.

Zoom Factor	Magnification on 27" LCD	Optical Magnification
1	1.8	0.6
5	9.8	3.2
10	18.9	6.2
15	29.0	9.5
20	38.8	12.7
30	64.1	21
30 +1	79.4	26
30 +2	91.6	30
30 +3	106.9	35
30 +5	140.5	46
30 +10	201.5	66
10 +28	131.3	43
30 +28	436.7	143
10 +56	226	74
30 +56	754.2	247

NOTE: This item is not returnable.
