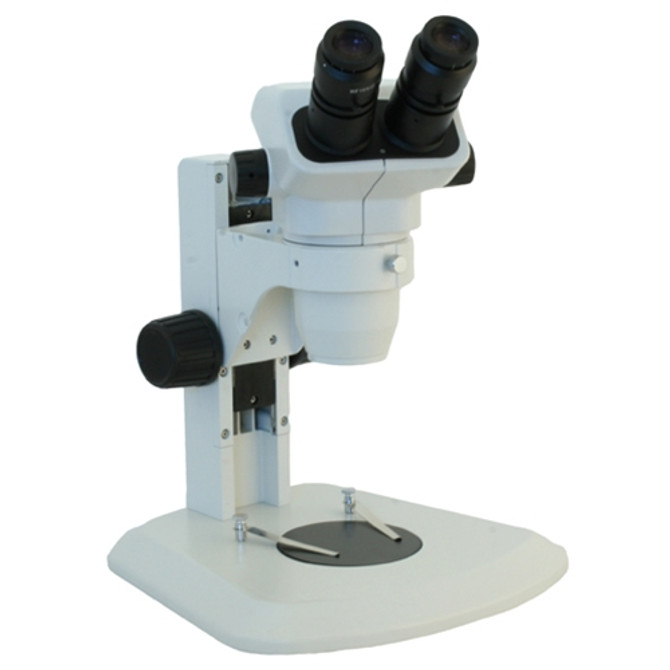

FZ8-TS High Resolution Stereo Zoom Microscope

Fein Optic provides high resolution optics with a magnification range of 6.5x - 52x. The FZ8-TS is available with a binocular or trinocular viewing head with the option to add a digital camera and is on a track stand.

• Viewing Head: 45° inclined viewing head rotates 360°. Select when ordering from a binocular or trinocular viewing head. A digital version of this product is available here. When beam splitter is engaged light is split between left eyetube and trinocular port, while right eyetube goes dark. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Eyepieces: Includes high eyepoint widefield 10x eyepieces, FN 24mm with ±5 diopter adjustment on each eye. Optional 15x/16mm and 20x/12mm eyepieces are available for purchase separately.
• Objectives: Zoom stereo 0.65x - 5.2x provides a zoom ratio of 8:1.
• Total Magnification: Zoom range of 6.5x - 52x when using included 10x eyepieces. View chart below for alternate options when using auxiliary lenses or alternate eyepieces.
• Working Distance: 100mm. Can be adjusted from 26mm - 177mm depending on auxiliary lens utilized. See magnification chart below.
• Specimen Stage: Includes black/white stage plate and two stage clips.
• Stand: Track stand with no built-in illumination. Vertical travel of 110mm. Includes dust cover.
• Focusing: Precision guide rack and pinion focusing with tension adjustable focus knobs.
• Illumination: 4 quadrant LED ring light. If you prefer different illumination, please contact us for a quote.
• Size: 11.75" W x 12" D x 12.5" H
• Warranty: 5 Year Warranty.

Fein Optic Part #s: FZ8-TS, FZ8T-TS
