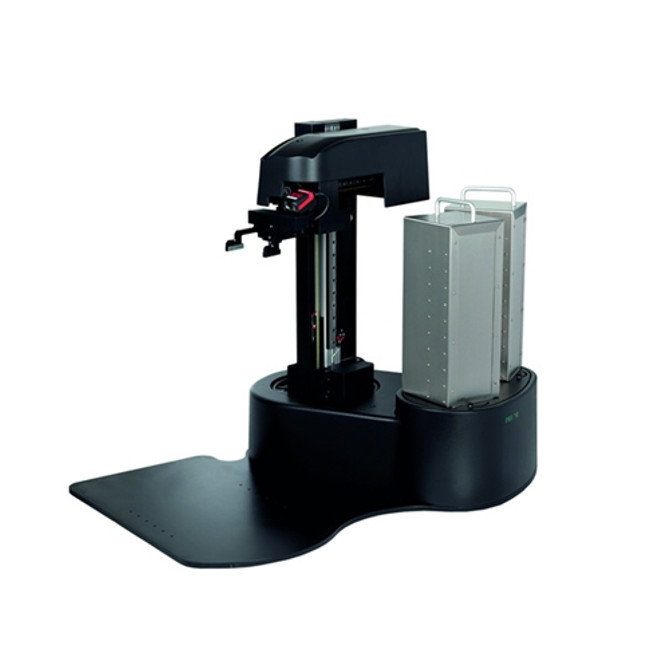

This Prior Scientific automatic well plate loader system includes two stainless steel racks. Not included but required: ProScan III motorized stage and controller. The robotic well plate loader is designed for use with inverted microscopes and Prior's OpenStand-V. It has a capacity of 20 plates suited to high-content screening applications.
Positional feedback sensors on all three axes and an automatic plate detection process, as well as an easy to set up loading routine ensure the system can run independently for long periods of time without any intervening. Rack sensors allows racks to be swapped while unit is running. Compatible with standard multiwell plates up to 19mm thick, both with and without lids.
NOTE: This system does not include free shipping. Please contact us for a quote to calculate freight charges.
Well Plate Loader System Specifications:
- Included: 2 stainless steel racks.
- Capacity: 20 well plates (In 2 racks of 10 plates in each rack)
- Communications: USB
- Scanning Stage Compatibility: Compatible with ProScan H117 Inverted Stages.
- Footprint: Compact unit occupies only 0.47 m2 of bench
- Load/Unload Cycle Speed: 29 seconds
- Rack Sensor: Racks can be swapped while unit is running
- Well Plate Detection: Racks are scanned for plates present. Plates are barcode read prior to loading for random access.
- Handling Sensors: Well plate presence sensors are built into both the gripper arm and stage insert, for confirming safe and accurate transfer.
- Dimensions: 84cm W x 55cm D x 66cm H (33" W x 22" D x 26" H)
- Compliance: CE
View the PLW20 Well Plate Loader Datasheet.
NOTE: This item is not returnable.
Prior Scientific part #: PLW20
