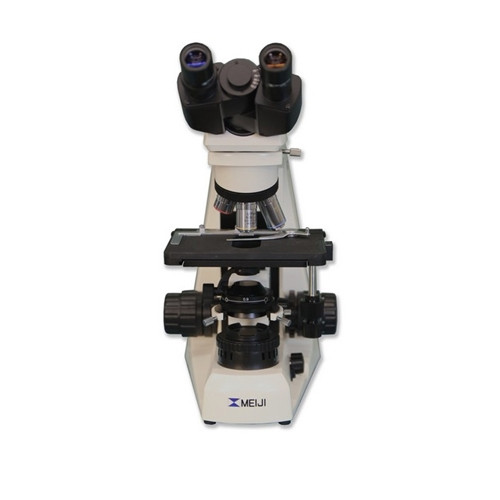

The Meiji MT4200D/MT4300D dermatology microscopes include the infinity corrected optical system and high quality U. Plan objectives. Choose from the binocular or trinocular viewing head when ordering.
- Objective Lenses: DIN Infinity Corrected Optical System (ICOS) objectives are mounted in
a smooth-operating, ball bearing mounted, quintuple nosepiece. Dermatology microscope objectives include:
- Plan Apo 1.25x/0.04, WD 3.7mm
- Plan Semi-Apo 4x/0.10, WD 17.8mm
- Plan Semi-Apo 10x/0.25, WD 10.7mm
- Plan Semi-Apo 20x/0.40, WD 7.29mm
- Plan Semi-Apo 40x/0.65, WD 0.5mm

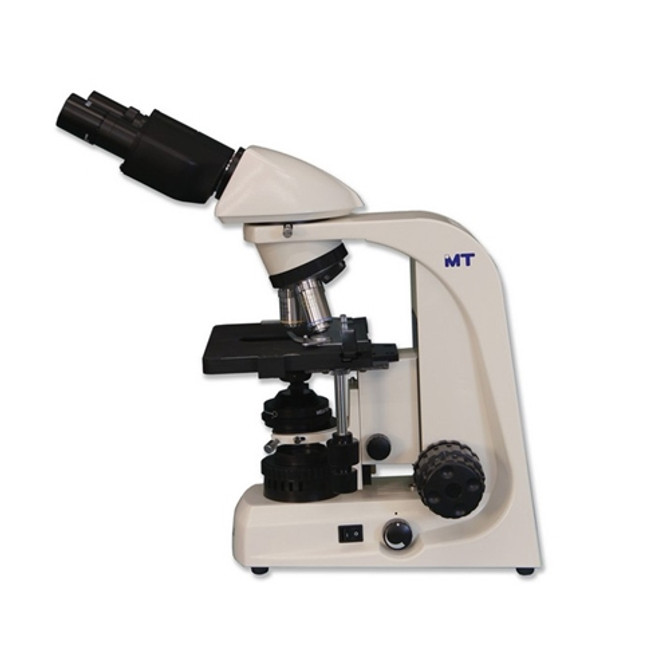

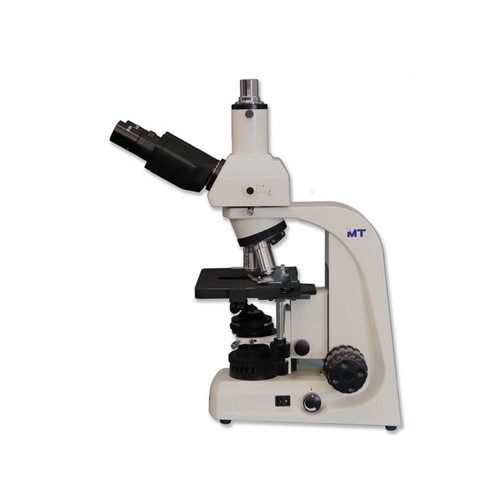

- Viewing Head (select when ordering): Choose from Siedentopf-type binocular head or trinocular head for camera integration. Each head has the eyetubes inclined at 30° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm - 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. (100% to eyetubes or 80% to phototube & 20% to the eyetube.)
- Eyepieces: Includes 10x Widefield High Eyepoint eyepieces, F.N.20.
- Total Magnification: 12.5x, 40x, 100x, 200x and 400x.
- Specimen Stage: Ceramic coated right-handed, flat top stage 171mm x 115mm that travels 78mm(X) x 52mm(Y). Stage has ergonomically positioned coaxial drop down controls.
- Illumination: Powerful white LED Illumination from 3W LED bulb with 5500K color temperature provides enhanced image quality and brightness for the observation of dermatology samples.
- Light Focusing:
Includes centerable Abbe 1.25 NA Condenser with swing-out top lens, iris diaphragm in dovetail mount.
- Size & Weight:
- Binocular - 390mm (15.6") D x 410 (16.1") H x 210mm (8.3") W, 8kg (17.6 lbs).
- Trinocular - 390mm (15.6") D x 465 (18.3") H x 210mm (8.3") W, 8.7kg (19.2 lbs).
- Warranty: Meiji Techno warrants this product against defects in material and/or workmanship for the life of the instrument from the date of original purchase to the original purchaser. Electrical warranty is 90 days.
