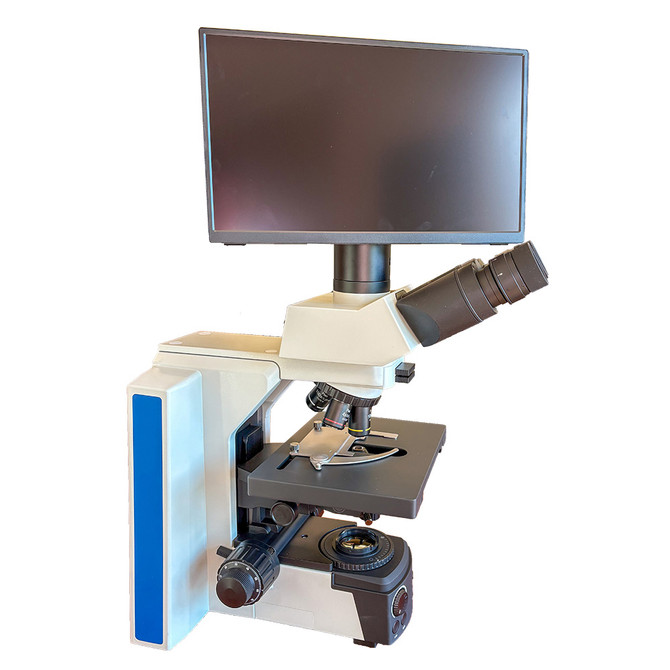

Advanced Andrology Semen Analysis Digital HD Phase Microscope

This andrology and semen analysis microscope is used for viewing both the quality and quantity of semen. This semen analysis microscope includes a HD digital camera and 13.3" HD monitor for viewing live images and capturing images. Andrologists use phase contrast when they do not want to stain a sample in order to view the shape of the sperm. Semen analysis microscopes include a heated stage plate and controller, which allows the semen to remain living, which is important in andrology analysis.

• Objective Lenses: Quintuple objective turret holds the included DIN Infinity Corrected Optical System (ICOS) Objectives:
  • Plan Phase Contrast 10x Objective, NA 0.25, WD 12.1mm
  • Plan Phase Contrast 20x Objective, NA 0.40, WD 1.5mm
  • Plan Phase Contrast 40x Objective, NA 0.65, WD 0.36mm
  • Plan Phase Contrast 100x Objective, NA 1.25, WD 0.18mm, Oil Immersion
• Viewing Head: Trinocular head with beam splitter 100:0, 50:50 with 30º fixed incline. Interpupillary distance is adjustable 50~75mm and left eyetube has an adjustable diopter of ±5.
• Eyepieces: Includes FPL-WF 10x widefield, high eyepoint eyepieces, FN22. One eyepiece contains reticle retaining ring for 26mm diameter reticle.
• Total Magnification: 100x, 200x, 400x and 1000x.
• Specimen Stage: Double-layer mechanical stage, 215mm x 170mm with right-hand ergonomic controls. Specimen holder allows for either one or two slides. X-Y axis travel is 76mm x 55mm.
• Illumination: High intensity 10W LED transmitted Koehler light system gives a bright and uniform field for each magnification and has a color temperature of 4500K. Voltage is 90~230V.
• Condenser: Phase turret condenser with slots for PH1, PH2, PH3, PH4 and BF. Includes centering telescope and green interference filter.
• Focusing: Coaxial focusing system has coarse and fine focusing with an adjustment tension device to prevent slipping. Focusing range is 28mm. Fine focus adjustment has precision of 1µm.
• Heated Stage: Includes heating stage and one channel controller. Includes all cables, power supplies, sensors and probes.
• Camera: 4K HD camera with HDMI and USB3 output and ethernet port. 1/1.8" Exmore Sony IMX334(C) sensor. Pixels 2.0 x 2.0µm. 60 frames per second at 3840 x 2160 HDMI. Binning 1x1. 8mp image capture, software, power adapter 100~240V, HDMI Cable, SD Card, USB Mouse. Includes software for PC with USB connection for image capture. Software can be used to capture images and video and make measurements. If making measurements with the software you will need a stage micrometer (available separately).
• HD Monitor: 13.3" LCD 4K HDMI monitor, true 1080P. LED backlight. Monitor mounts directly to HD camera. Includes 110~240V power cord and short HDMI cable.
• Size & Weight: 10" (254mm) W x 17" (432mm) D x 17.1" (435mm) H, ~25kg
• Warranty: 5 years excluding electrical parts
