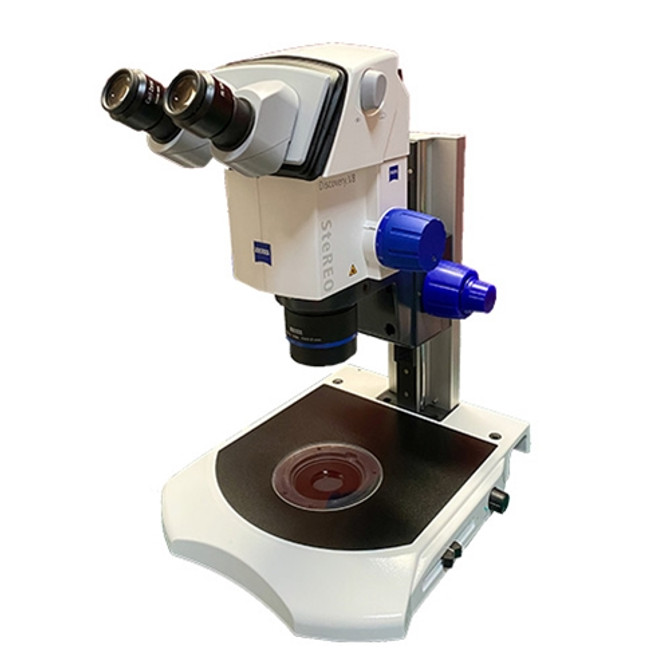

Zeiss SteREO Discovery V8 BF/DF Stereo Microscope

The SteREO Discovery V8 is a common main objective stereo microscope with parfocalled Apochromatic optics over the entire magnification range from 1x-8x. The microscope has selectable click-stops and is manufactured by ZEISS. This system includes a transillumination base for viewing with brightfield and darkfield.

• Viewing Head: Ergonomic trinocular head with adjustable eyetubes, can be angled between 5º and 45º. Interpupillary distance adjustment from 51mm - 75mm. Beam splitter 100/100.
• Detent: Manual focus drive with adjustable click stops.
• Eyepieces: Includes widefield 10x / 23mm focusing eyepieces. Eyepieces accept 26mm diameter reticle. Includes eyecups.
• Objective Lens: Zoom range of 1x - 8x. 1x Plan Achromat Objective (WD = 81mm)
• Zoom Ratio: 8:1
• Total Magnification: 10x - 80x.
• Stand: Track stand with transillumination base with 90 white-light LED transmitted light, brightness knob, and socket for footswitch. 3-position turret for brightfield plus oblique light contrast by shiftable diaphragm, homogenous brightfield with 67mm diameter, and all-side darkfield, also unilateral by movable diaphragm. Includes glass stage plate 120mm diameter and darkfield insert diaphragm. 100~240V. CE, UL, FCC, PSE approved. Base of stand is 322mm W x 373mm D x 42mm H.
• Working Distance: 63 mm
• Focusing: Manual coarse and fine focus drive. Column is 350mm, lifting range of 220mm.
• Illumination: Built-in 90 white-light LED transmitted light for brightfield and darkfield illumination.
• Size: 450mm (17.7") W x 433mm (17") D x 521mm (20.5") H, 23.2 kg (51 lb)
• Warranty: 1 year.
• View the SteREO Discovery.V8 Zoom Stereo Microscope Brochure
  View the Modular Stereo and Zoom Microscope Informational Brochure
