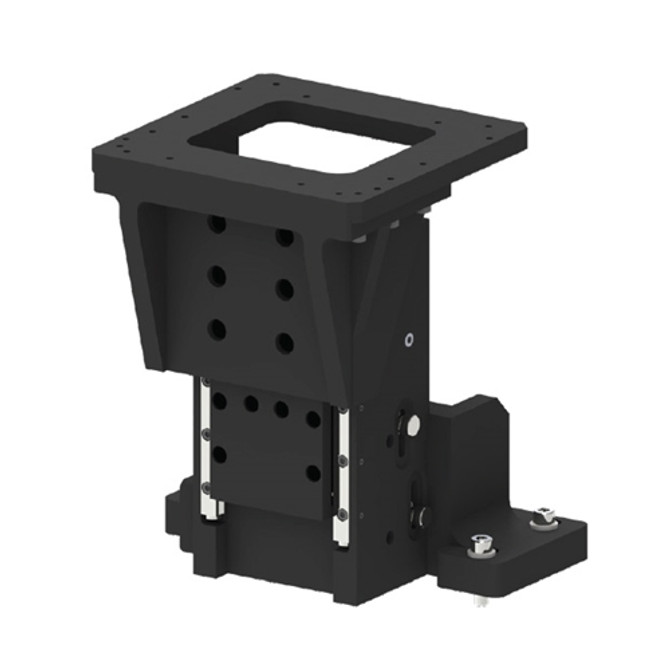

Z Axis Motorized Focus Block with Offset Base for Reflected Light

The Prior Scientific FB205 Z-Axis motorized focus block provides precise focus adjustments for routine microscopy, sample translation, and Z-stacking. The high load capacity of the drive allows Prior Scientific motorized stages to be mounted directly, in order to provide a standalone XYZ three axis stage system that is fully controlled by Prior's ProScan III controller.

Z-Axis Motorized Focus Block specifications:

• Encoded: Your choice of non-encoded or encoded. Select when ordering.
• Travel Range: 38mm
• Resolution: 20nm (non-encoded), 100nm (encoded)
• Repeatability: +/-0.7µm (non-encoded), +/-0.3µm (encoded)
• Speed Range: 1-14mm/s
• Controlled By: ProScan III controller
• Max Load: 14kg (30.8 lbs)
• Cable Length: 1m
• Dimensions: 180mm W  x 143mm D x 184mm H

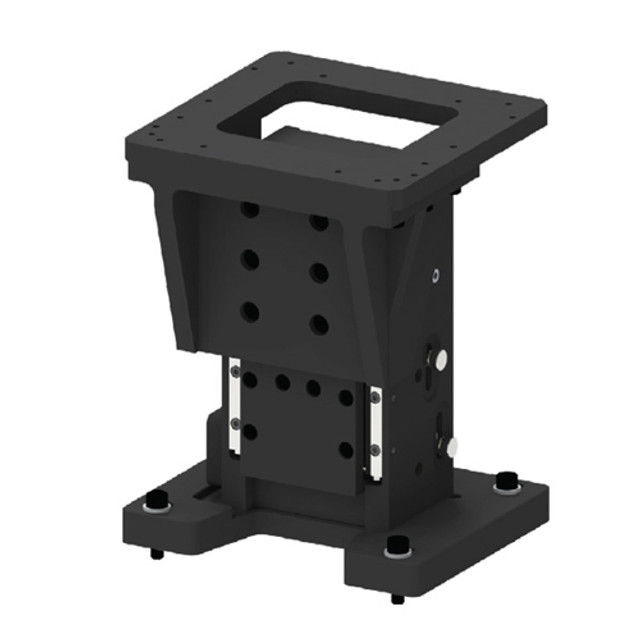

• Included: Single axis stepper motor drive with offset base for reflected light. Includes brackets for upright transmitted light and inverted microscopy, offset base.

View the Z Axis Motorized Focus Block FB205 Datasheet

Prior Scientific Part #: FB205, FB2045

NOTE: This item is not returnable.
