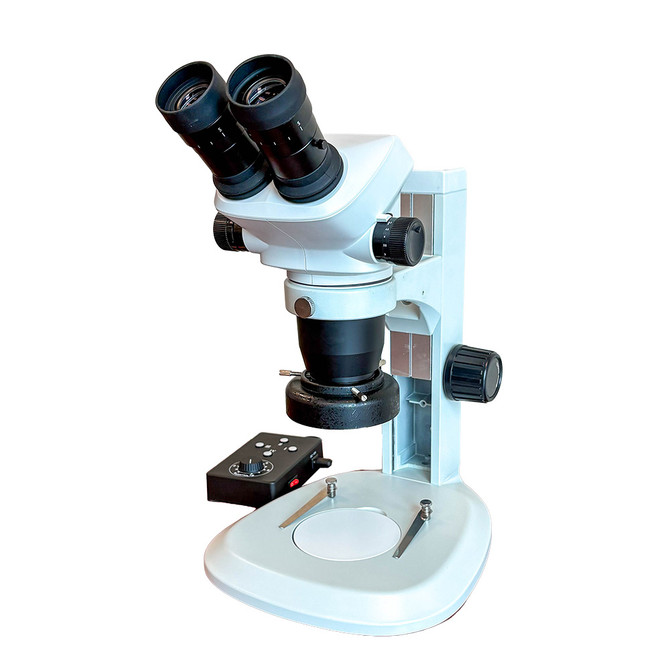

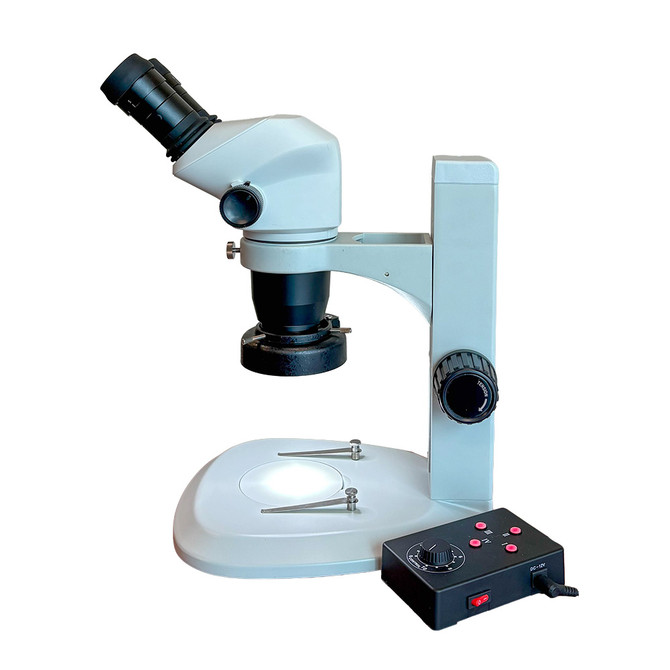

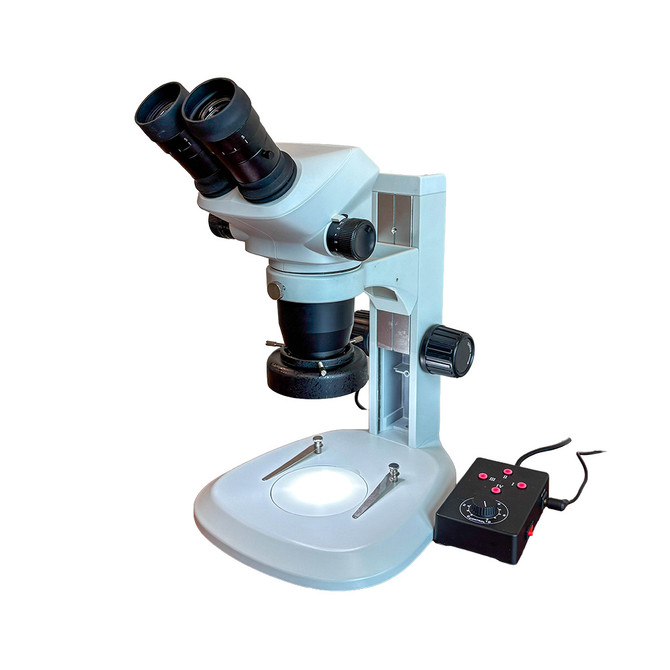

Visual Measurement Microscope 6.5x - 52x

The visual measurement microscope has detent for repeatable measuring purposes and includes your choice of a metric or inch reticle installed in the eyepiece. When ordering select a LED ring light or LED dual pipe lights for your microscope system.

• Stereo Microscope Body : 45º inclined viewing head rotates 360º. Binocular microscope with 0.65x - 5.2x zoom. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Eyepieces: Includes widefield 10x eyepieces, FN24 with ±5 diopter adjustment on each eye. Eyepiece reticle installed.
• Reticle: Measuring reticle comes installed in eyepiece. Your choice of 10mm / 100 division reticle or 0.4" / 100 division reticle. If you would like a different measuring reticle please call. Please see the chart below for the distance provided between each line on the reticle ruler at different magnifications.
• Total Magnification Range options: 6.5x - 52x. Alternative magnifications can be obtained using an auxiliary lens.
• Working Distance: 100mm
• Stand: Track stand includes two stage clips. Stand is ergonomic, with low-profile base. Includes black/white stage plate.
• Focusing: Rack and pinion focusing controls, 120mm focusing stroke.
• Illumination: Your choice of LED ring light or LED dual pipe light. Select when ordering.
• Warranty: Five year warranty excluding electrical parts. Illuminator has 1-year warranty.

VM-FZ6TS
