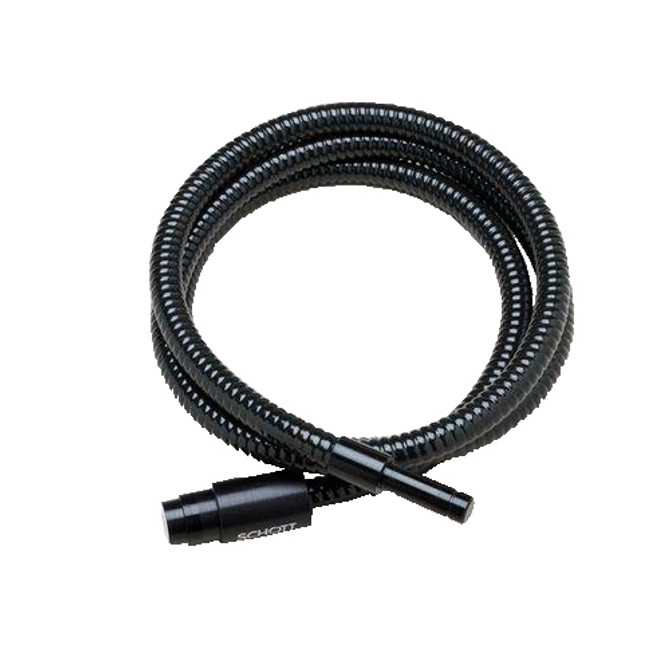

SCHOTT ColdVision Randomized Single Flexible Bundle 8mm

This SCOTT ColdVision Flexible Bundle is a highly bendable light guide with a 8mm input fiber diameter. This bundle is randomized to improve the uniformity of the spot light output and is available in three lengths.

NOTE: This is only a light guide. A light source for the guide must be purchased separately.

• Input fiber diameter (end that connects to light box): 8mm (0.31")
• Bundle length (select when ordering): 1016mm (40") , 1524mm (60"), or 2032 (80")
• Bend radius: 15mm (0.6")
• Tubing diameter: 12mm (0.47")
• Diameter at end of light guide: 10mm (0.39")

View the SCHOTT ColdVision Flexible Bundles Data Sheet

SCHOTT part #s A08031.40R / 1209887, A08031.60R / 1210161, A08031.80R / 1210166

NOTE: This item is not returnable.
