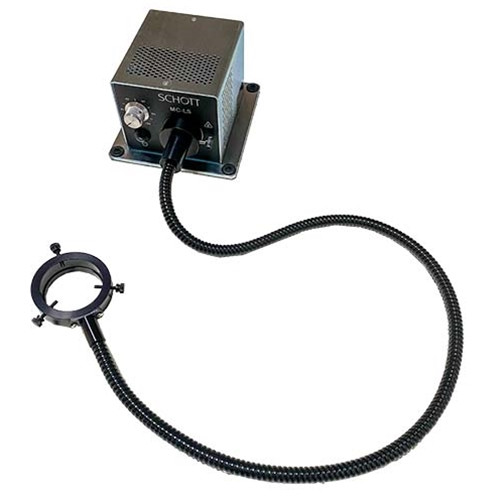

This SCHOTT ColdVision MC-LS LED Light Source with a ring light is designed for use in stereo microscopy and can be used with microscope objectives between 38-53mm in diameter. The ring light fits Navitar and DHRM microscope objectives. The system includes the MC-LS LED light source and a mini ring light.
Ring light specifications:
Objective diameter range: 38 to 53mm
Inner diameter: 53.1mm (2.09")
Outer diameter: 58.7mm (2.31")
Working distance range: 13 to 38 mm (0.5" to 1.5")
Length of connection to box: 1016mm (40")

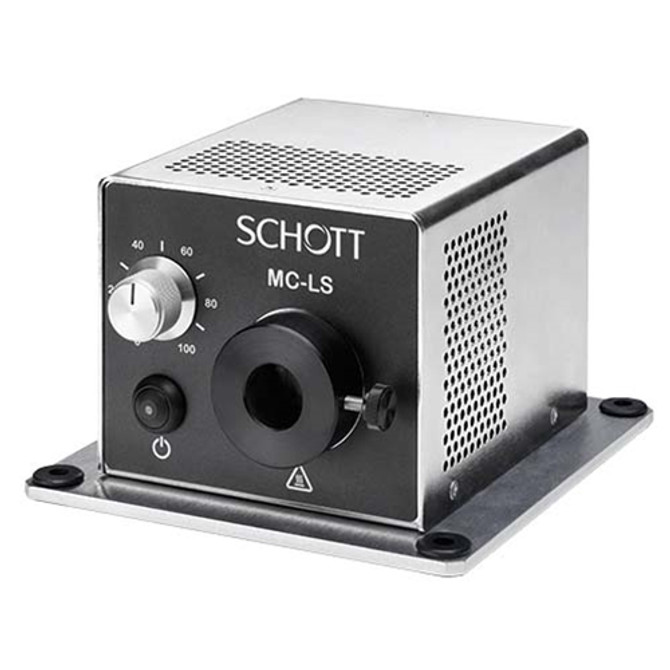

ColdVision MC-LS Specifications:
Color Temperature: 5400K cool white.
Luminous Flux: Up to 8502 lm light flux.
Max Active Light Guide Ø: 13mm
Voltage: 100~240V, 50/60Hz
Light Box: Continuous dimming, fan cooling, temperature monitoring for protection of the LED light engine, high resistance to vibration and shock.
Analog and Digital Remote Control: USB, RS-232, 9-pin connector.
Light Box Dimensions / Weight: 158mm x 145mm x 98mm (6.2" x 5.7" x 3.9"), 2kg (4.62 lb)
