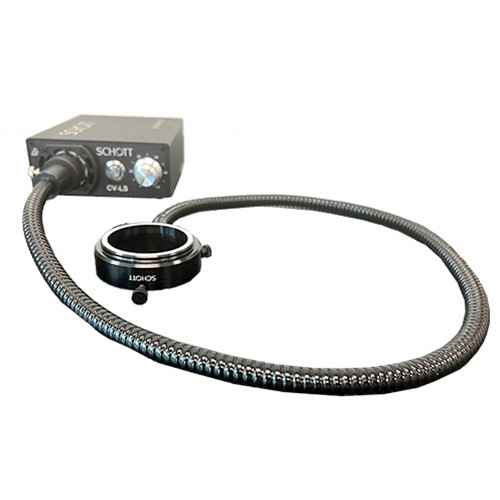

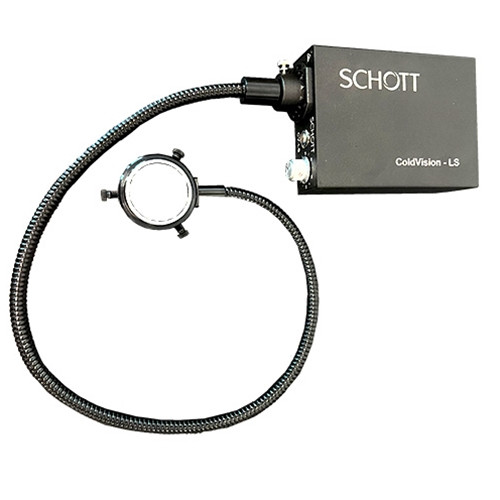

SCHOTT ColdVision CV-LS with 38-53mm Ring Light

This SCHOTT ColdVision CV-LS LED Light Source with a ring light is designed for use in stereo microscopy and can be used with microscope objectives between 38 and 53mm in diameter. The ring light fits Navitar and DHRM microscope objectives. The system includes the CV-LS LED light source and a midi ring light.

Ring light specifications:

• Objective diameter range: 38 to 53mm
• Inner diameter: 53.1mm (2.09")
• Outer diameter: 58.7mm (2.31")
• Working distance range: 13 to 38 mm (0.5" to 1.5")
• Length of connection to box: 1016mm (40")



CV-LS Specifications:

• Color Temperature: 6000K cool white.
• Luminous Flux: Up to 1350² lm light flux.
• Max Active Light Guide Ø: 13mm
• Voltage: 100~240V
• Light Box: Continuous dimming, fan cooling, ESD Immunity.
• Analog and Digital Remote Control: USB, RS-232, Dual Ethernet.
• Light Box Dimensions / Weight: 129mm x 201mm x 59.7mm (5.08" x 7.93" x 2.35"), 0.816kg (1.8 lb)
• Certifications: CE
• Warranty: 2 years

View the SCHOTT ColdVision CV-LS Data Sheet

View the SCHOTT ColdVision Ring Lights Data Sheet

View the SCHOTT ColdVision Series Brochure

SCHOTT part #s 1595982 / A20980/6000K and 1197615 / A08630
