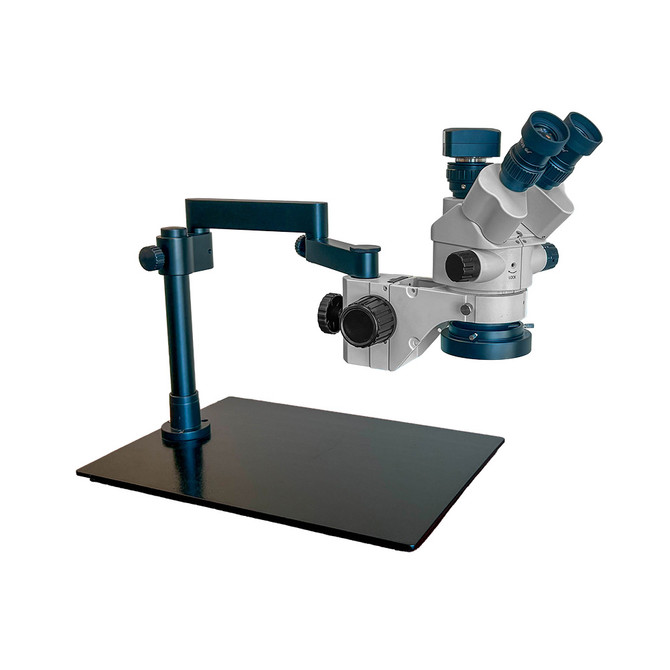

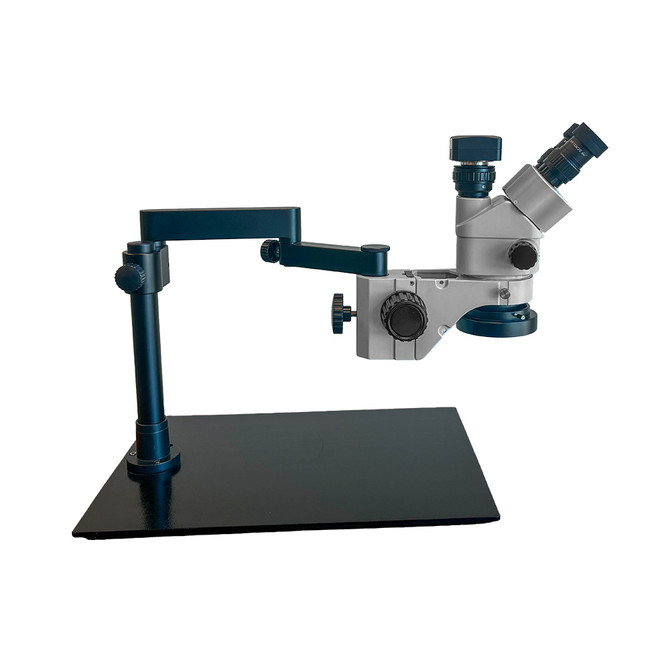

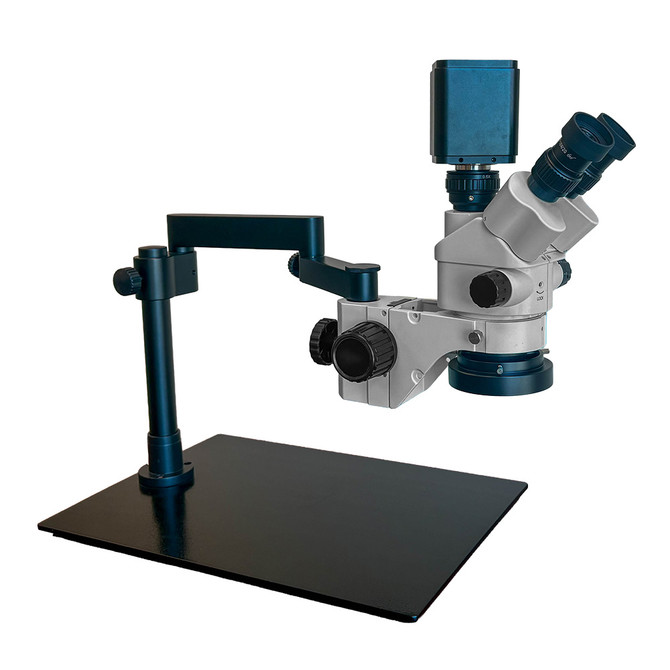

S6 Digital Articulated Arm Stereo Zoom LED Microscope 7x-45x

The Richter Optica digital stereo microscope has zoom magnification range of 7x - 45x and comes on a stand with an articulated arm. Choose from a 5 mp or 8 mp digital camera for easy image capture.

• Head: Trinocular body has a 45° inclined head. Viewing head rotates 360° and locks in place by tightening a set screw. Includes c-mount.
• Eyepieces: Includes widefield 10x / 20mm high eyepoint eyepieces in focusing eyetubes. Interpupillary distance is adjustable from 50mm to 75mm. Eyepieces accept 24mm diameter reticle. 15x and 20x eyepieces are available and can be ordered separately.
• Objective Lenses: Zoom range of 0.7x - 4.5x.
• Zoom Ratio: 6.4:1
• Total Magnification: 7x - 45x. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart here for details. Option to lock zoom magnification at specific stopping point.
• Stand: Rectangular base is 300mm wide x 450mm deep. Vertical post is 280mm high. Articulated arm can be moved higher or lower on the post and has 2 moveable sections with a maximum total reach of ~330mm.
• Working Distance: 100mm
• Focusing: Coarse focus adjustment.
• Illumination: LED ring light attaches to microscope. Ring light has 48 LEDs and has adjustable intensity.
• Stand Size / Weight: Base is 11.8" W x 17.7" D, 11" H, 15 lbs.
• Camera: Select when ordering from one of two camera options:
  • 5.1mp camera (2592x1944) allows capture of motion video and still images. Includes software for image capture and measurement.
  • 8 mp 4K HD camera has HDMI and USB3 output. 1/1.8" Exmore Sony IMX334(C) sensor. Pixels 2.0 x 2.0µm. 60 frames per second at 3840 x 2160 HDMI. Binning 1x1. 8mp image capture, software, power adapter 100~240V, HDMI Cable, SD Card, USB Mouse. Includes software for PC with USB connection for image capture. Software can be used to capture images and video and make measurements.
• Warranty: 5 year warranty on microscope excluding electrical parts, 1 year on camera and ring light
• Includes: Dust cover

S6 Microscope Brochure
