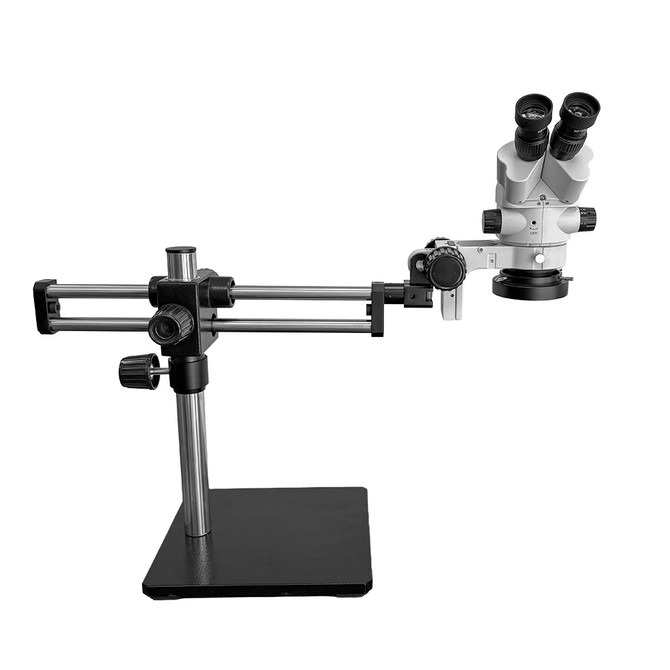

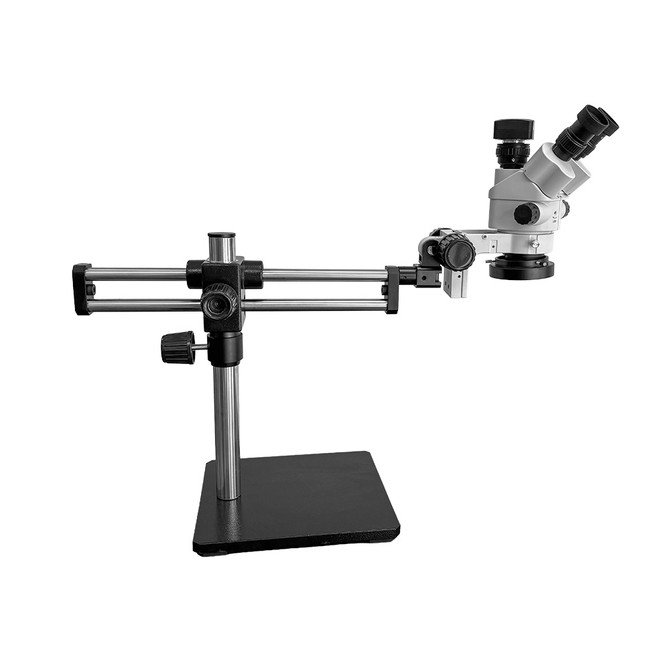

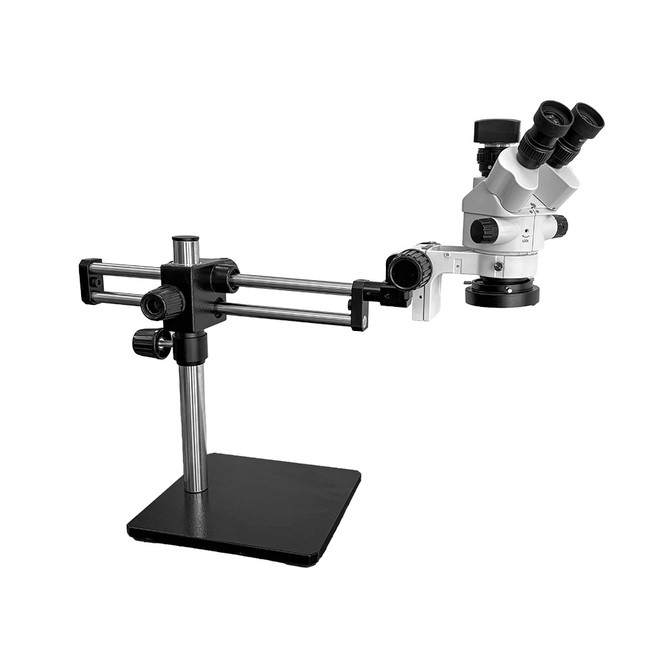

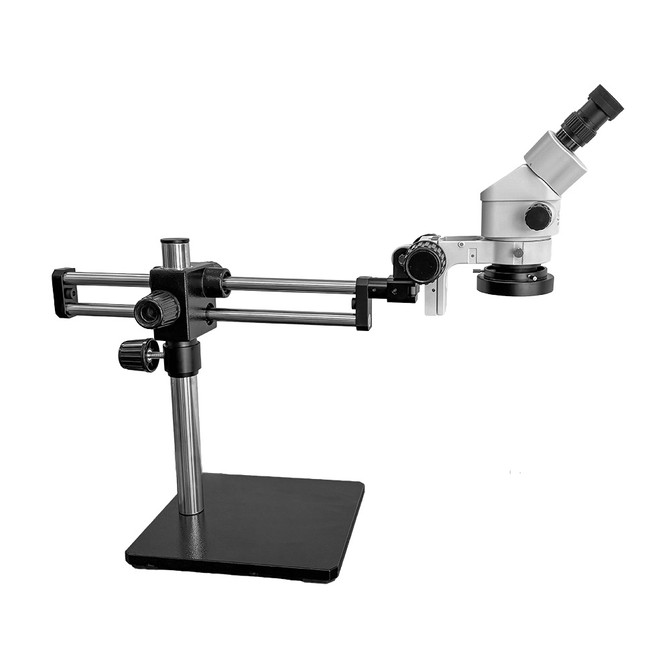

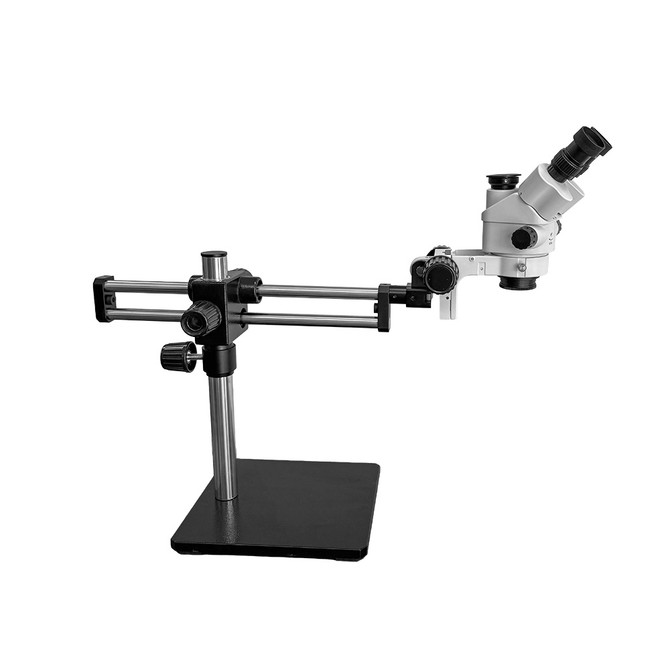

Richter Optica S6-BBSQ stereo zoom microscope provides magnification of 7x-45x. The S6-BBSQ is available in binocular, trinocular, or digital options on a ball-bearing boom stand with a LED ring light.
- Head: Your choice of binocular or trinocular body viewing head that rotates 360 and locks in place by tightening set screw. The digital option includes a 5.1 mp digital camera and a 0.35x camera mount adapter.
- Eyepieces: Includes widefield 10x/20mm high eyepoint eyepieces. Interpupillary adjustment from 50mm - 75mm. Dual diopters on eyetubes. Eyepieces accept a 24mm diameter reticle. 15x and 20x eyepieces are available separately.
- Objective Lenses: Zoom range of 0.7x - 4.5x.
- Zoom Ratio: 6.4:1
- Total Magnification: 7x - 45x. For alternate magnifications, eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart here for details.
- USB Camera (included with digital option ONLY): Digital option includes a 5.1mp (2592 x 1944) USB3.0 microscope camera. Included software allows capture of still images and video. Software allows annotations, measurements and image correction. Windows PC or MAC (please note measurement feature does not work on a MAC). In order to make measurements with the software you will need a stage micrometer for calibration. A stage micrometer is available separately for purchase.
- Stand: Ball bearing boom stand with vertical post that is 15" tall. Vertical post has a locking ring. Horizontal posts have smooth ball bearing movement and are 22.4" from end to end.
- Working Distance: 100mm
- Focusing: Focusing holder provides coarse focusing.
- Illumination: LED ring light has 48 LEDs and adjustable intensity. Light attaches to microscope body.
- Base Dimensions: Base dimensions are 11.2" x 10.2" x 1.3"
- Weight: 59 lbs
- Warranty: 5 years on microscope excluding electrical parts. 1 year warranty on camera (applies only to digital option).
- View the S6 brochure here.
