sale

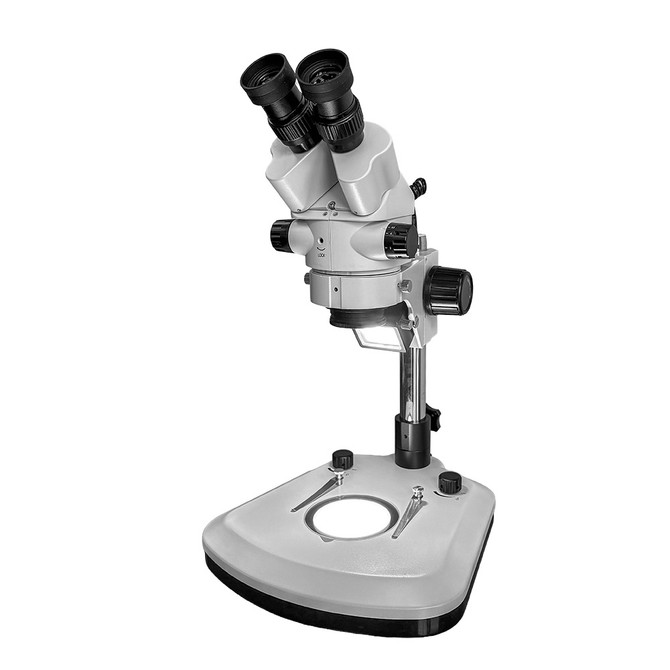

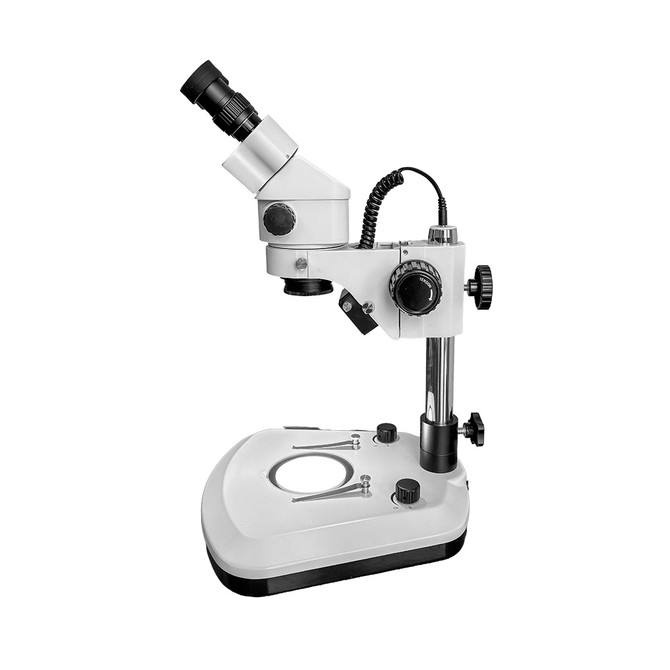

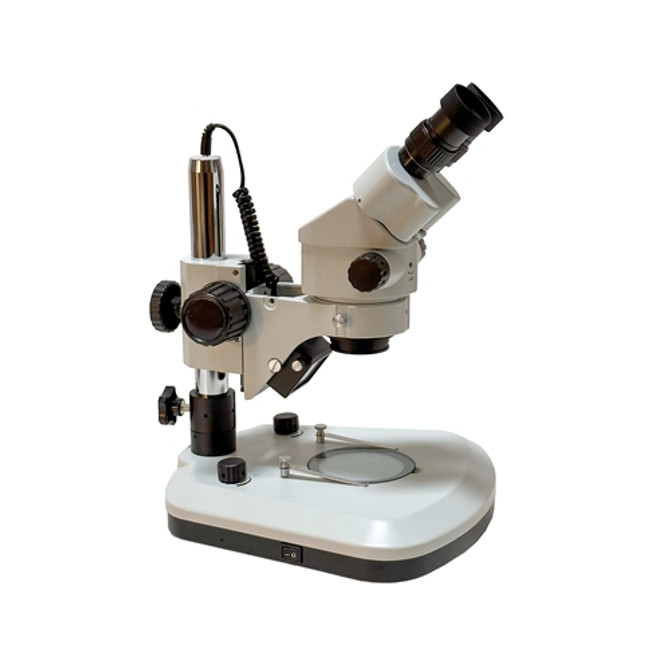

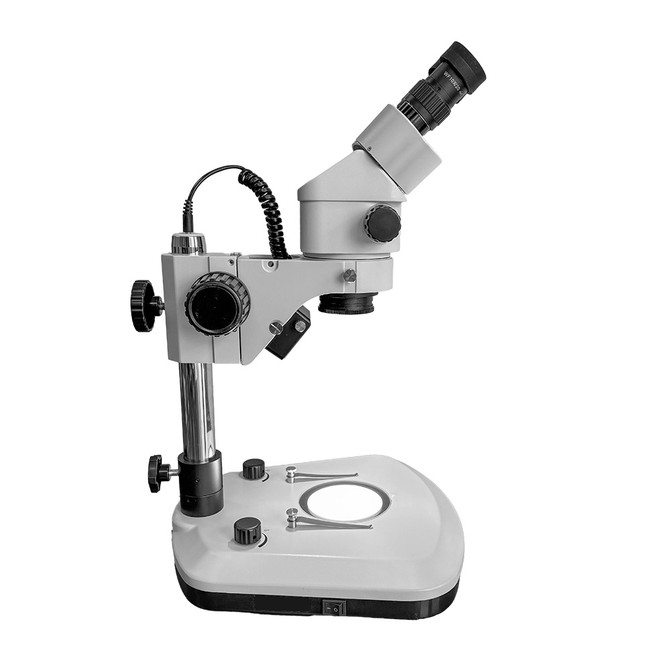

S6 Basic Stereo Zoom Microscope 14x-90x
The Richter Optica S6-ILS2-20 stereo microscope has zoom magnification of 14x - 90x. The microscope is on a track stand with built in top and bottom LED illumin…
SKU:
S6-ILS2-20
$1,820.00
$1,640.00
The Richter Optica S6-ILS2-20 stereo microscope has zoom magnification of 14x - 90x. The microscope is on a track stand with built in top and bottom LED illuminators.
- Head: Binocular body. Viewing head rotates 360°, locks in place by tightening set screw.
- Eyepieces: Includes widefield 20x / 10mm high eyepoint eyepieces in focusing eyetubes. Interpupillary adjustment from 50mm to 75mm. 10x and 15x eyepieces are available and can be ordered separately.
- Objective Lenses: Zoom range of 0.7x - 4.5x.
- Zoom Ratio: 6.4:1
- Total Magnification: 14x - 90x. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart here for details. Option to lock zoom magnification at any stopping point within the zoom range.
- Specimen Stage: Supplied with a 100mm glass stage plate. Includes two locked-on stage clips.
- Stand: Track stand has built in top and bottom LED illuminators. Top illuminator has its own intensity control and each light operates independently of the other. 100V~240V.
- Working Distance: 100mm
- Focusing: Coarse focus adjustment.
- Illumination: Transmitted and reflected LED illumination with intensity control and on/off switch for each light. Top light has bright LED lights.
- Stand Size / Weight: 11.5" W x 12" D, 14.75" H, 9.2 lbs.
- Warranty: 5 Year warranty on microscope.
Frequently Bought Together
Please choose options for all selected products
Description
The Richter Optica S6-ILS2-20 stereo microscope has zoom magnification of 14x - 90x. The microscope is on a track stand with built in top and bottom LED illuminators.
- Head: Binocular body. Viewing head rotates 360°, locks in place by tightening set screw.
- Eyepieces: Includes widefield 20x / 10mm high eyepoint eyepieces in focusing eyetubes. Interpupillary adjustment from 50mm to 75mm. 10x and 15x eyepieces are available and can be ordered separately.
- Objective Lenses: Zoom range of 0.7x - 4.5x.
- Zoom Ratio: 6.4:1
- Total Magnification: 14x - 90x. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart here for details. Option to lock zoom magnification at any stopping point within the zoom range.
- Specimen Stage: Supplied with a 100mm glass stage plate. Includes two locked-on stage clips.
- Stand: Track stand has built in top and bottom LED illuminators. Top illuminator has its own intensity control and each light operates independently of the other. 100V~240V.
- Working Distance: 100mm
- Focusing: Coarse focus adjustment.
- Illumination: Transmitted and reflected LED illumination with intensity control and on/off switch for each light. Top light has bright LED lights.
- Stand Size / Weight: 11.5" W x 12" D, 14.75" H, 9.2 lbs.
- Warranty: 5 Year warranty on microscope.
