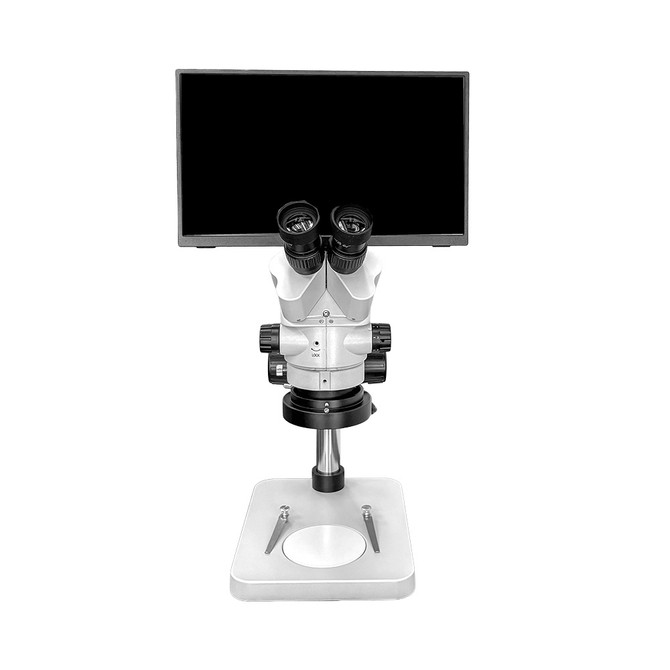

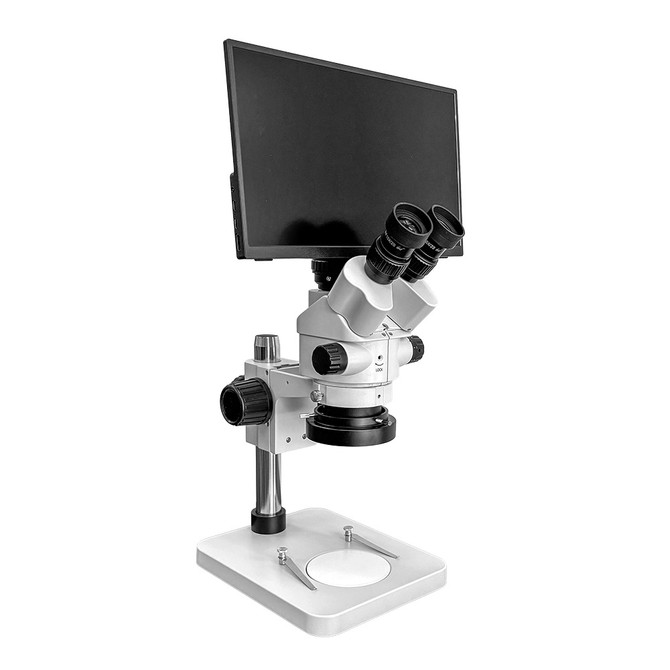

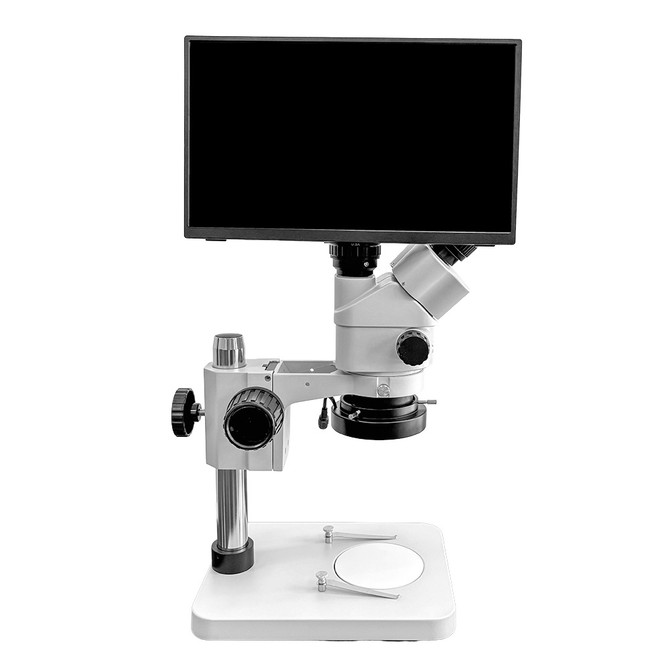

The Richter Optica S6LCD-SPS is a stereo zoom microscope with zoom magnification of 7x - 45x on a compact, small post stand with a HD 1080p camera and 13" HD monitor for viewing live images or capturing images.
- Head: Trinocular body. Viewing head rotates 360°, locks in place by tightening set screw. Includes 0.35x c-mount adapter.
- Eyepieces: Includes widefield 10x / 20mm high eyepoint eyepieces. Interpupillary adjustment from 50mm to 75mm. Dual diopters on both eyetubes. Eyepieces accept 24mm diameter reticle. 15x and 20x eyepieces are available and can be ordered below.
- Objective Lenses: Zoom range of 0.7x - 4.5x.
- Zoom Ratio: 6.4:1
- Total Magnification: 7x - 45x. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart here for details.
- Specimen Stage: Supplied with a 100mm black and white stage plate. Two locked-on stage clips.
- Stand: Post stand with ergonomic, low-profile base, rugged, cast metal frame with gray enamel finish. Post stand is 11.25" tall.
- Working Distance: 100mm
- Maximum Specimen Height: 4.75" (120mm).
- Focusing: Rack & pinion focusing and special tension adjustment located on focusing knobs to adjust tension.
- Illumination: Select LED dual pipe light or LED ring light.

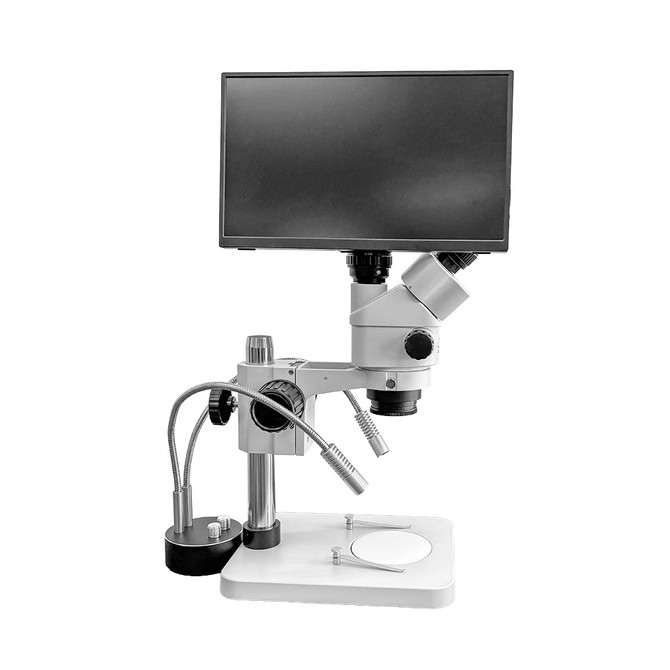

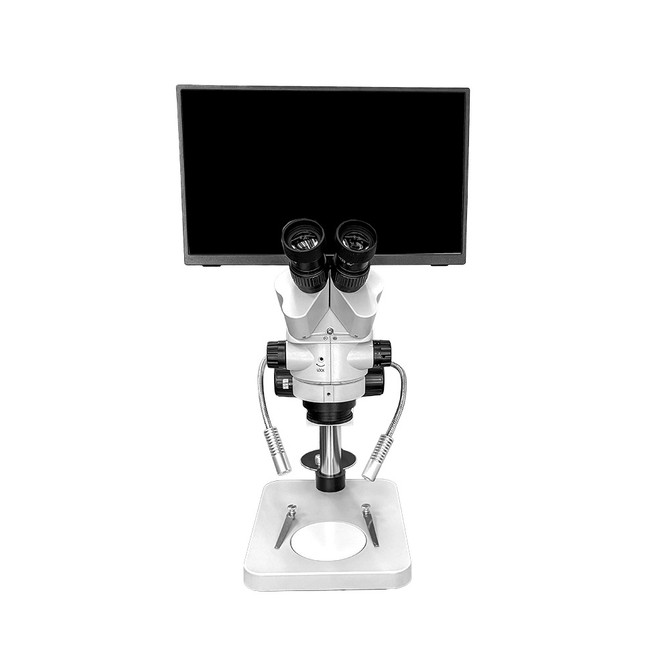

- The LED dual pipe light has 3w LED bulbs on each pipe end. Bulb life expectancy is 20,000 hours. 110v-240v power supply with variable intensity control.
- The LED ring light has 48 LED bulbs at 35,000 LUX. Bulb life expectancy is 100,000 hours.
- Size & Weight: Base is 7.5" W x 11" D, 11.5" H, 9 lbs
- Camera: HD 1080p camera, live resolution 1920x1080 pixels. 2mp image capture to USB flash drive (not included). Live image 1080p / 60 fps. HDMI connection to 13" HD monitor. Camera controls for exposure, gain, white balance, color adjustment, sharpness. Includes mouse for on-screen controls. HDMI direct connection to monitor.
- Software Calibration: If you plan to make measurements using the software you will need to calibrate the microscope. Calibrating your software with the microscope requires use of a stage micrometer. A stage micrometer is available for purchase separately.
- LCD HD Monitor: 13" LCD HDMI monitor, 1080p. LED backlight. Monitor mounts directly to the HD camera and includes 110~240V power cord and HDMI cable.
- Warranty: 5 Year warranty on microscope, 1 year on camera and monitor.
Click here for Instruction Manual
