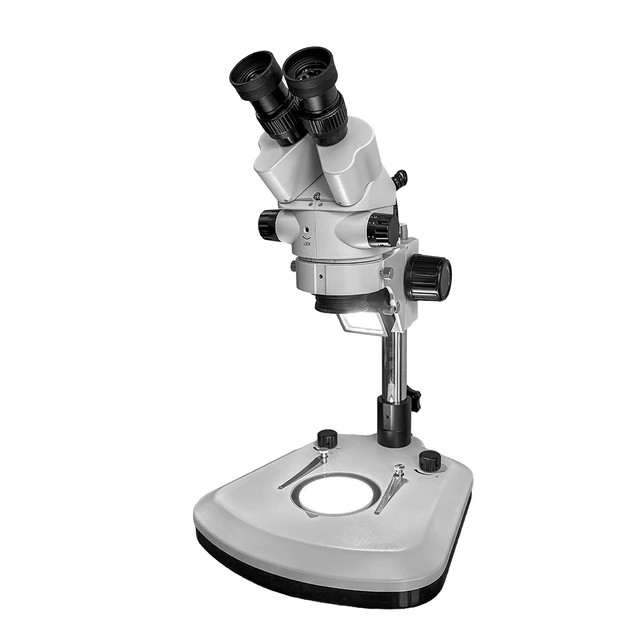

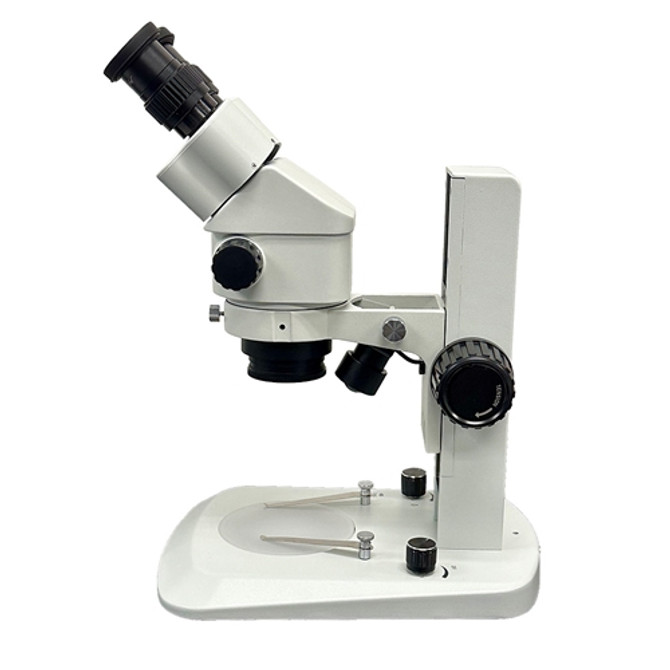

Richter Optica S6 Stereo Zoom Microscope 14x-90x

The Richter Optica S6-DL stereo microscope has zoom magnification of 14x - 90x with built-in LED reflected and transmitted lighting.

• Head: Binocular body. Viewing head rotates 360°, locks in place by tightening set screw.
• Eyepieces: Includes widefield 20x / 10mm high eyepoint eyepieces with focusing eyetubes. Interpupillary adjustment from 50mm to 75mm. 10x and 15x eyepieces are available and can be ordered below.
• Objective Lenses:  Zoom range of 0.7x - 4.5x.
• Zoom Ratio: 6.4:1
• Total Magnification: 14x - 90x. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart here for details. Option to lock zoom magnification at a specific stopping point.
• Specimen Stage: Supplied with a frosted plastic stage plate and two locked-on stage clips.
• Stand: Rugged cast metal frame with white enamel finish - head moves up and down on track stand with total Z-travel of 4.5". Built-in top and bottom illumination. Focusing holder has top LED light built into it. Bottom LED light shines up through stage plate.
• Working Distance: 100mm
• Maximum Specimen Height: 3.81" (96.85mm)
• Focusing: Rack & pinion focusing, and special tension adjustment located on focusing knobs to adjust tension.
• Illumination: Built in transmitted and reflected LED illumination with intensity rheostat control and on/off switch for each light.
• Size & Weight: Base is 7.5" W x 11" D, 11.5" H, 9 lbs.
• Warranty: 5 Year warranty on microscope.

Instruction Manual

Click here to see ideas of things to view with this microscope.
