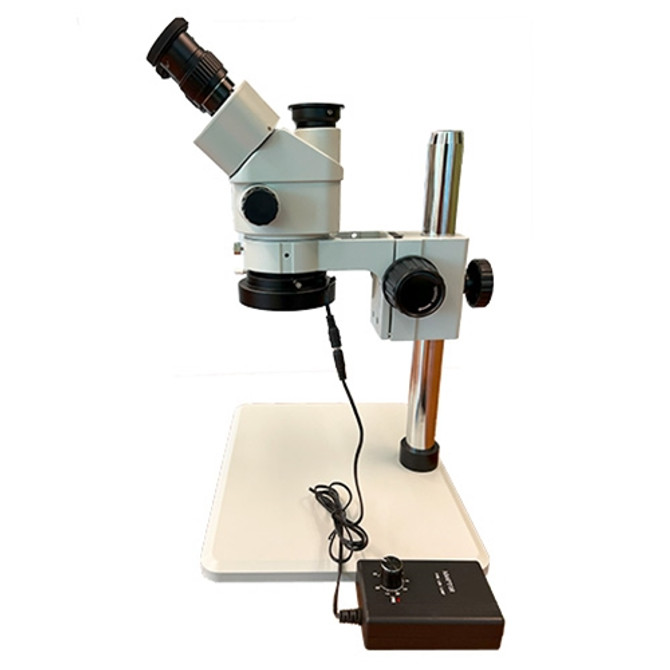

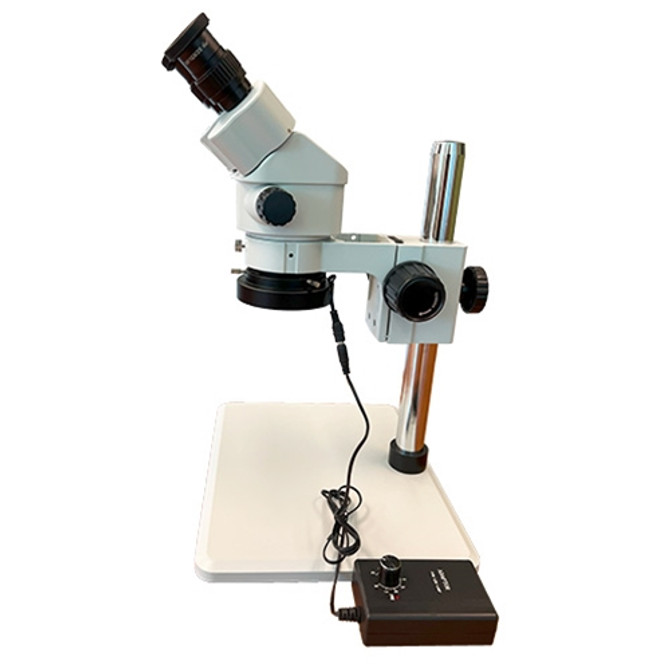

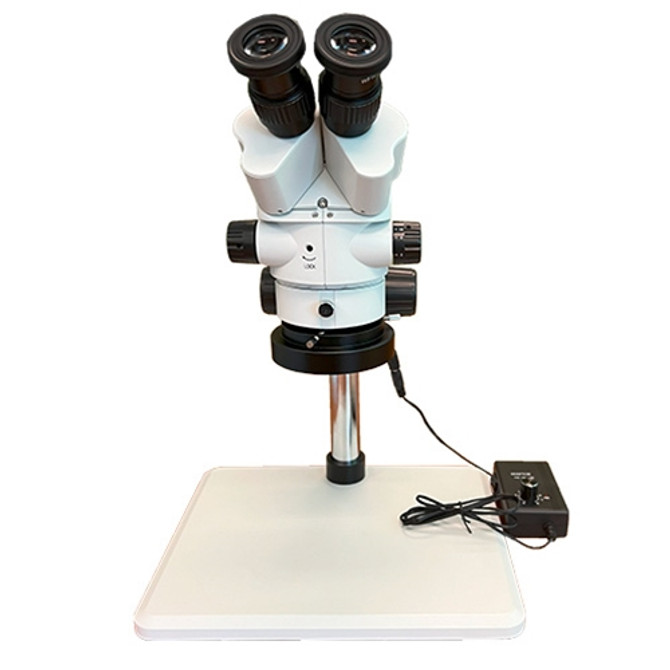

The Richter Optica S6-SLK stereo microscope has zoom magnification of 7x - 45x and is on a post stand. Choose from binocular, trinocular, or digital options.
- Head: Binocular or trinocular body (select when ordering). Viewing head rotates 360° and locks in place by tightening set screw. The digital option includes a c-mount adapter, a 5mp microscope digital camera, and software.
- Eyepieces: Includes widefield 10x / 20mm high eyepoint eyepieces. Interpupillary adjustment from 50mm to 75mm. Dual diopters on eyetubes. Eyepieces accept 24mm diameter reticle. 15x and 20x eyepieces are available and can be ordered below.
- Objective Lenses: Zoom range of 0.7x - 4.5x.
- Zoom Ratio: 6.4:1
- Total Magnification: 7x -45x. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart here for details.
- Stand: Low-profile post stand with plain white base, 320mm W x 260mm D (12.6" W x 10.2" D). Top of post on stand is ~350mm (13.8") high, and the maximum distance between the microscope head and the base is ~260mm (10.2").
- Working Distance: 100mm.
- Focusing: Rack & pinion focusing has slip clutch to protect mechanism against over-turning and special tension adjustment. 120mm focusing stroke.
- Illumination: LED ring light with adjustable brightness and 48 LED lights rated to last 100,000 hours.
- Camera: If the digital option is selected when ordering, a 5.1mp USB3 camera with software for image capture and measurement is included. If you wish to make measurements with the software, a stage micrometer is required and can be ordered separately.
- Warranty: 5 Year warranty on microscope. 1 year on light.
- Instruction Manual
Richter Optica Part #s: S6B-SLK-LEDR, S6T-SLK-LEDR, S6D-SLK-LEDR
