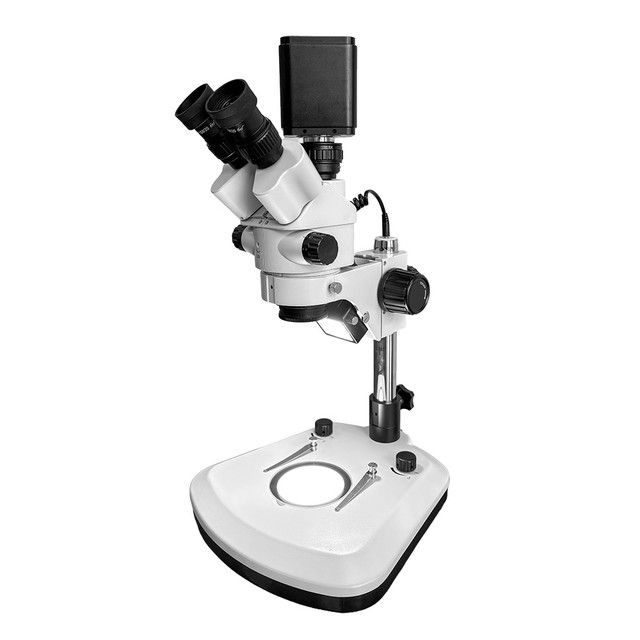

The Richter Optica digital stereo microscope has zoom magnification range of 7x - 45x and comes on a stand with an articulated arm. The system includes a digital camera, which directly attaches to a monitor for easily viewing sample images.
- Head: Trinocular body has a 45° inclined viewing head. Viewing head rotates 360° and locks in place by tightening a set screw. C-mount included.
- Eyepieces: Includes widefield 10x / 20mm high eyepoint eyepieces in focusing eyetubes. Interpupillary distance is adjustable from 50mm to 75mm. Eyepieces accept 24mm diameter reticle. 15x and 20x eyepieces are available and can be ordered separately.
- Objective Lenses: Zoom range of 0.7x - 4.5x.
- Zoom Ratio: 6.4:1
- Total Magnification: 7x - 45x. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart here for details. Option to lock zoom magnification at specific stopping point.
- Stand: Rectangular base is 300mm wide x 450mm deep. Vertical post is 280mm high. Articulated arm can be moved higher or lower on the post and has 2 moveable sections with a maximum total reach of ~330mm.
- Working Distance: 100mm
- Focusing: Coarse focus adjustment.
- Illumination: LED ring light attaches to microscope. Ring light has 48 LEDs and has adjustable intensity.
- Stand Size / Weight: Base is 11.8" W x 17.7" D, 11" H, 15 lbs.
- Camera: HD 1080p camera has live resolution 1920 x 1080 pixels. 2mp image capture to USB flash drive (drive not included). Live image 1080p / 60 fps. HDMI connection to 13" HD monitor. Camera controls for exposure, gain, white balance, color adjustment, sharpness. Includes mouse for on-screen controls.
- LCD HD Monitor: 13" LCD HDMI monitor, 1080p is LED backlight. Monitor mounts directly to HD camera and includes 110~240V power cord and HDMI cable.
- Warranty: 5 year warranty on microscope, 1 year warranty on camera, monitor, and ring light
S6 Microscope Brochure
