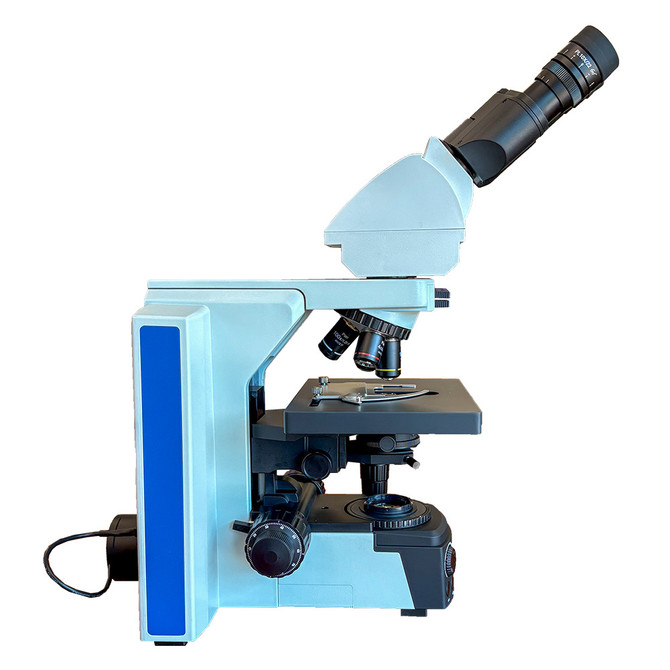

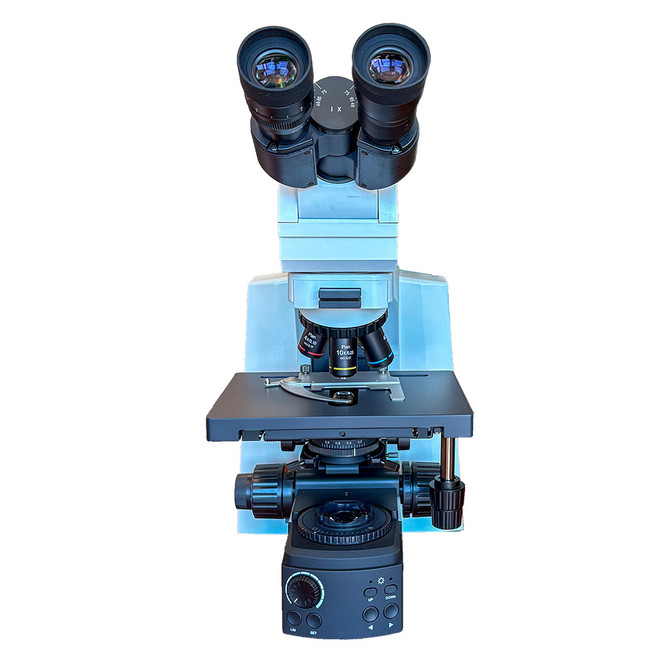

The Fein Optic RB41 Pathology lab microscope is designed for precise tissue sample observation in mind. Choose from an ergonomic binocular or trinocular viewing head.
- Objective Lenses: Quintuple objective turret holds the included DIN Infinity Corrected Optical System (ICOS) Objectives:
- Plan Achromat 2x, NA 0.06, WD 5mm
- Plan Achromat 4x, NA 0.10, WD 11.9mm
- Plan Achromat 10x, NA 0.25, WD 12.1mm
- Plan Achromat 20x, NA 0.40, WD 1.5mm
- Plan Achromat 40x, NA 0.65, WD 0.36mm
- Viewing Head: Select when ordering from the following:
- Ergonomic binocular viewing head can be adjusted between 5°~45° viewing angle. Interpupillary distance is adjustable from 50~75mm.
- Trinocular head has eyetubes inclined 30° and beam splitter with positions 100:0 and 50:50. Interpupillary distance is adjustable 50~75mm. Left eyetube has an adjustable diopter ±5.
- Eyepieces:
- If the ergonomic binocular viewing head is selected, eyepieces are SWH10x-H widefield, high eyepoint, focusing with FN23, dual diopters (-2~+8), and an anti-rotation stop pin.
- If the trinocular viewing head is selected, eyepieces are FPL-WF 10x focusing widefield, high eyepoint, FN22. One eyepiece contains reticle retaining ring for 26mm diameter reticle.
- Total Magnification: 20x, 40x, 100x, 200x, 400x
- Specimen Stage: Double-layer mechanical stage, 215mm x 170mm with right-hand ergonomic controls. Specimen holder allows for either one or two slides. X-Y axis travel distance is 76mm x 55mm.
- Illumination: High intensity 10W LED transmitted Koehler light system gives a bright and uniform field for each magnification and has a color temperature of 4500K. Voltage 90~230V.
- Light Focusing: Telecentric Koehler illumination system provides NA 0.9/ 1.25 swing-out condenser for use with 2x-100x objectives.
- Focusing: Coaxial focusing system has coarse and fine focusing with an adjustment tension device to prevent slipping. Focusing range is 28mm. Fine focus adjustment has precision of 1mm.
- Size: 10" (254mm) W x 17" (432mm) D x 17" (435mm) H, ~25kg
- Warranty: 5 years on microscope excluding electrical parts.
