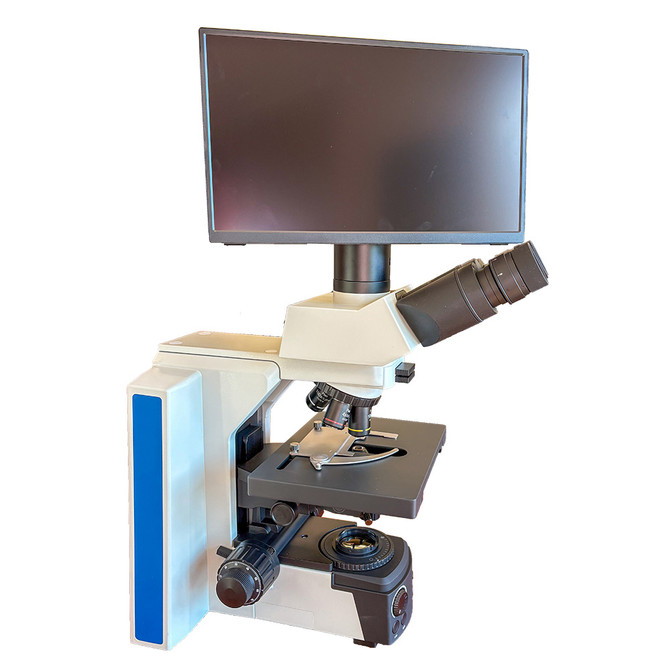

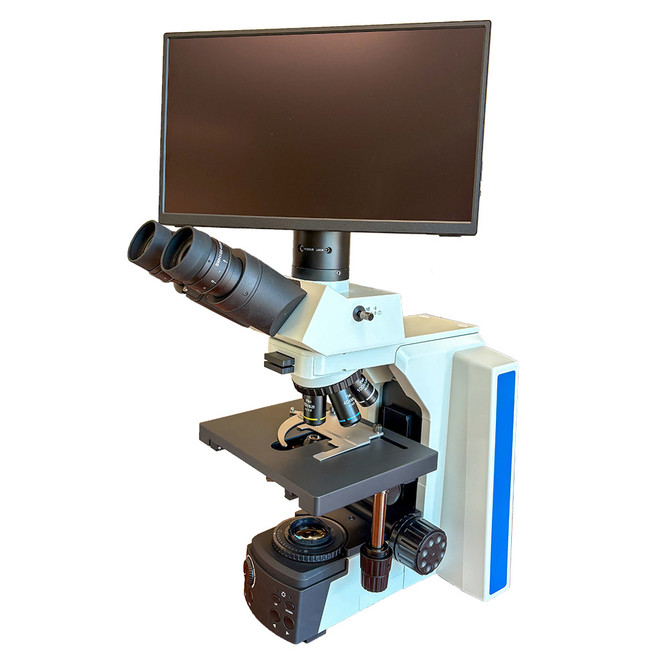

The Fein Optic RB41 HD digital microscope includes an HD camera with an attached HD monitor for easy, real-time sample viewing.
- Objective Lenses: Reversed quintuple nosepiece with slot for analyzer holds the following included DIN Infinity Corrected Optical System (ICOS) Objectives:
- Plan Achromat 4x, NA 0.10, WD 11.9mm
- Plan Achromat 10x, NA 0.25, WD 12.1mm
- Plan Achromat 40x, NA 0.65, WD 0.36mm
- Plan Achromat 100x, NA 1.25, WD 0.18mm, Oil Immersion
- Viewing Head: Trinocular head has 30° inclined eyetubes and interpupillary adjustment from 50~75mm. Beam splitter has positions of 100/0 and 50/50. Left eyetube has diopter with adjustment of ±5. Includes 0.5x C-mount.
- Eyepieces: Includes PL-WF 10x widefield, plan eyepieces, FN22. One eyepieces accepts 26mm diameter reticle.
- Total Magnification: 40x, 100x, 400x and 1000x
- Specimen Stage: Double-layer mechanical stage, 215mm x 170mm with right-hand ergonomic controls. Specimen holder allows for either one or two slides. X-Y axis travel of 76mm x 55mm
- Focusing: Coaxial focusing system has coarse and fine focusing with an adjustment tension device to prevent slipping. Focusing range is 28mm. Fine focus adjustment has precision of 1mm.
- Illumination: High intensity 10W LED Koehler transmitted light system with color temperature of 4500K provides a bright and uniform field for each magnification. Voltage 90~230V.
- Camera: Includes 4K HD camera with HDMI and USB3 output with the following specifications:
- 1/1.8" Exmore Sony IMX334(C) sensor
- Pixels 2.0 x 2.0µm
- 60 frames per second at 3840 x 2160 HDMI
- Binning 1x1
- 8mp image capture
- Includes power adapter 100~240V, HDMI Cable, SD Card, USB Mouse.
- Includes software for PC with USB connection for image capture. Software can be used to capture images and video and to make measurements.
- LCD HD Monitor: 13" LCD HDMI LED backlit monitor, true 1080P, mounts directly to HD camera. Includes 110~240V power cord and HDMI cable.
- Light Focusing: NA 0.9/ 1.25 Koehler illuminator condenser has swing-out top lens for 2x-100x coverage.
- Size: 10" (254mm) W x 17" (432mm) D x 17" (435mm) H, ~25kg
- Warranty: 5 years excluding electrical parts
