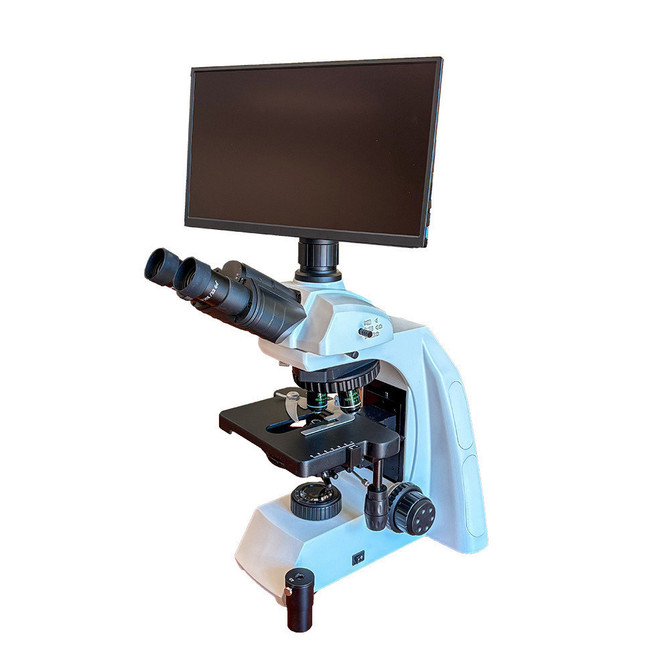

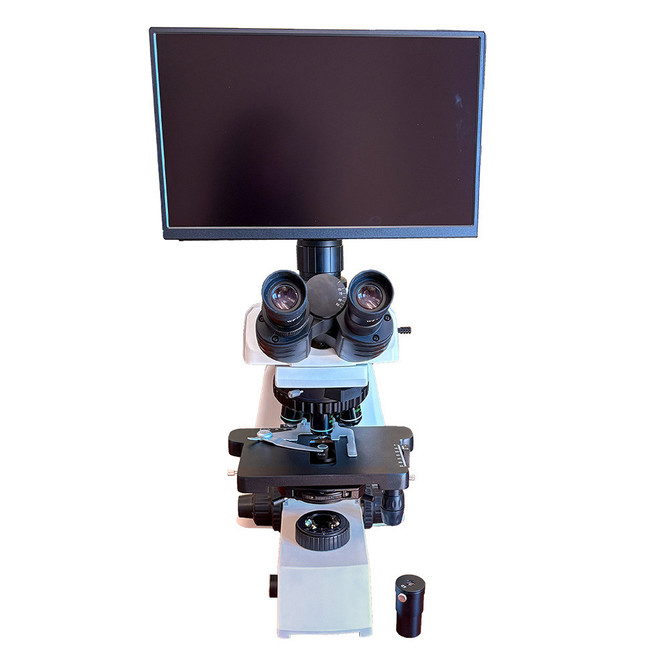

This microscope with full phase contrast objectives includes an HD camera with attached HD monitor for viewing live images of your sample. Images can be captured and saved to a USB2.0 flash drive. (Note that the flash drive is not included.)

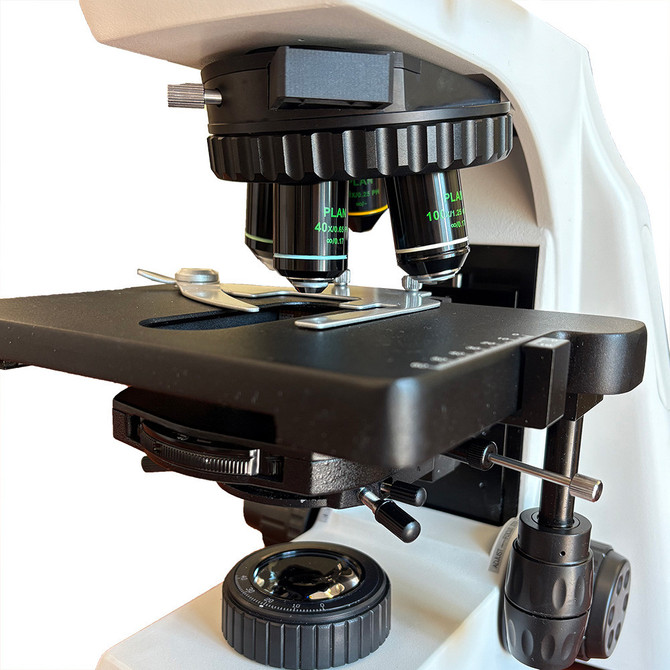

- Objective Lenses: Reversed quintuple objective turret holds the included DIN Infinity Corrected Optical System (ICOS) Objectives:
- Plan Phase Contrast 10x, NA 0.25, WD 12.1mm
- Plan Phase Contrast 20x, NA 0.45, WD 1.5mm
- Plan Phase Contrast 40x, NA 0.65 WD 0.36mm
- Plan Phase Contrast 100x, NA 1.25, WD 0.18mm
- Viewing Head: Trinocular head with 30° eyetubes. Interpupillary adjustment from 48-75mm. A 3-position beam splitter provides light 100% to the camera, 50/50 to the camera and eyepieces, or 100% to the eyepieces.
- Eyepieces: PL-WF 10x Widefield, plan eyepieces, FN22. Left eyetube has +/-5 focusing adjustment.
- Total Magnification: 100x, 200x, 400x and 1000x.
- Specimen Stage: 185 x 142mm mechanical stage with 75mm x 50mm movement range.
- Illumination: High intensity 3W LED transmitted Koehler light system provides a bright and uniform field for each magnification. Field iris is adjustable, with slot for 45mm diameter filter. Includes blue, green, and yellow filters. Voltage 100~240V.
- Light Focusing: Phase contrast condenser with brightfield, phase, centering screws and centering telescope. Stops include BF, 10xPh, 20xPh, 40xPh and 100xPh, with iris diaphragm.
- Focusing: Coaxial coarse and fine focusing. Tension adjustable. Fine adjustment of 0.002mm.
- HD Camera: Includes HD 1080p camera with direct output to HDMI 13" monitor for viewing live images. Includes on-screen monitor toolbar for for image capture, measurements, digital zoom in/out, horizontal flip, vertical flip, video freeze, display/hide camera control panel. Can capture and save images to USB 2.0 flash drive (not included). 60 fps at 1920 x 1080. Measurement can be performed using a stage micrometer. A stage micrometer may be ordered separately if required.
- HD Monitor: 13.3" LCD HDMI monitor, true 1080P. LED backlight. Monitor mounts directly to HD camera. Includes 110~240V power cord and short HDMI cable.
- Size & Weight: 19" (483mm) H x 13" (330mm) D x 10" (254mm) W, 22 lbs.
- Warranty: 5 years for microscope excluding electric parts, and 1 year limited warranty on camera and monitor.
The RB31 brochure can be found here.
