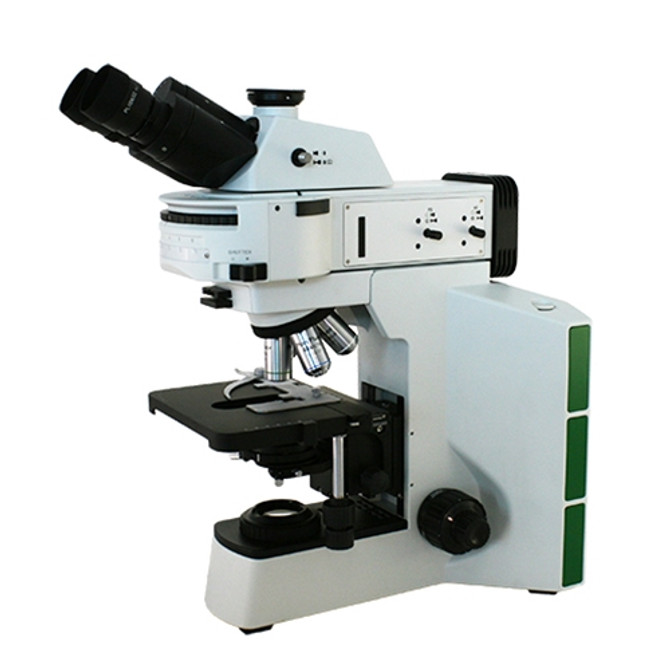

The Fein Optic RB41-RAB rabies diagnosis testing microscope meets guidelines set forth by the Centers for Disease Control (CDC) and the Association of Public Health Laboratories (APHL). View more information here regarding these rabies diagnosis guidelines.
- Objective Lenses: Reversed quintuple nosepiece with slot for analyzer holds the following included DIN Infinity Corrected Optical System (ICOS) Objectives:
- Plan Semi Apochromat Fluor 4x Objective, NA 0.13, WD 18.5mm
- Plan Semi Apochromat Fluor 10x Objective, NA 0.30, WD 10.6mm
- Plan Semi Apochromat Fluor 40x Objective, NA 0.75, WD 0.6mm
- Plan Semi Apochromat Fluor 100x Objective, NA 1.28, WD 0.21mm, Oil Immersion
- Viewing Head: Trinocular head has 30° inclined eyetubes and interpupillary adjustment from 50~75mm. Beam splitter has positions of 100/0 and 50/50. Left eyetube has diopter with adjustment of ±5.
- Eyepieces: PL-WF 10x widefield, plan eyepieces, FN22. One eyepiece accepts 26mm diameter reticle.
- Total Magnification: 40x, 100x, 400x and 1000x.
- Specimen Stage: 215 x 170mm mechanical stage has 76mm x 55mm X-Y travel range. Fine adjustment precision is 0.001mm. Has low position right-hand coaxial controls.
- Illumination: High intensity 10W LED Koehler transmitted light system provides a bright and uniform field for each magnification and has a color temperature of 4500K. Voltage is 90~230V.
- Fluorescence: 5W LED fluorescence illuminator has a 3 channel slider with excitation wavelengths at 365nm/ 480nm/ 560nm. Excitation colors are UV (340~390nm), blue (460~490nm), and green (540~570nm).
- Light Focusing: NA 0.9/ 1.25 Koehler illuminator condenser with swing-out top lens for 2x-100x coverage.
- Focusing: Coaxial focusing system has coarse and fine focusing with an adjustment tension device to prevent slipping. Focusing range is 28mm. Fine focus adjustment has precision of 1mm.
- Size: 10" (254mm) W x 17" (432mm) D x 17" (435mm) H, ~25kg
- Warranty: 5 years excluding electrical parts.
