The NPS-XY-100D Nanopositioning stage is a piezo scanned flexure-guided stage with integrated capacitance position sensors capable of sub-nanometer resolution and reproducibility. The stage is made of aluminum. The unique isostatic mounting system ensures that stresses from mounting the stage are properly relieved, and the center of the stage is the coordinate reference point. The system includes the NanoScan NPC-D-6330 Controller, which is specifically designed to control this type of stage.
Applications for the NPS-XY-100D Nanopositioning stage include atomic force microscopy (AFM), scanning probe microscopy (SPM), and near-field scanning optical microscopy (NSOM).
The Nanopostion Stage NPS-XY-100D is made to order and the exact specifications of your stage will be provided when you receive it. Typical specifications are as follows:
- Open Loop Range: ± 75 µm with a minimum of ± 65 µm (varies with each stage)
- Closed Loop Range: ± 55 µm with a minimum of ± 50 µm (varies with each stage)
- Scale factor error (1σ): Typical: 0.03%, Maximum of 0.1% (varies with each stage)
- Static stiffness (for all stages): 1 N/µm
- Resonant frequency: at 0g load: 650 Hz minimum, typical 780 Hz (varies with each stage)
- Maximum load (for all stages): 1 kg
- Size: 100mm L x 100mm W x 23mm H

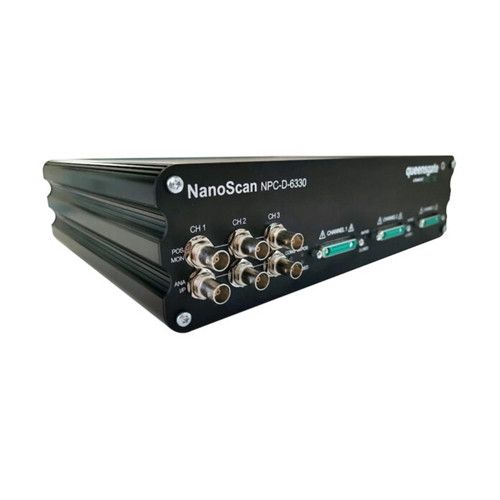

The NPC-D-6330 Controller is a 3-axis, 20 bit controller and has the following specifications:
- Interfacing: Analog command input and position output for compatibility with existing systems. Digital commands over USB for maximum accuracy with a DLL interface for customer software.
- Cooling: Convection cooled with temperature controlled fans
- Compatibility: Queensgate Nanobench, Micro-Manager, Metamorph, Elements via RS232C and other software using DLL interface.
- Controller Box Dimensions: 318mm x 240mm x 90mm
- Weight: 3kg
View the NPS XY Piezo Stage Aluminum Datasheet
View the Prior Scientific NanoScan NPC-D-6000 Series Controller Datasheet.
System includes 2m cable.
NOTE: This item is not returnable.
Prior Part # QGNPS-XY-100D-D3, QGNPC-D-6330, QGNPS-XY-100D
