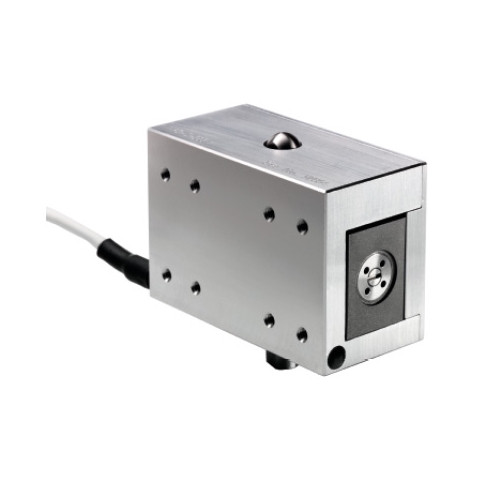

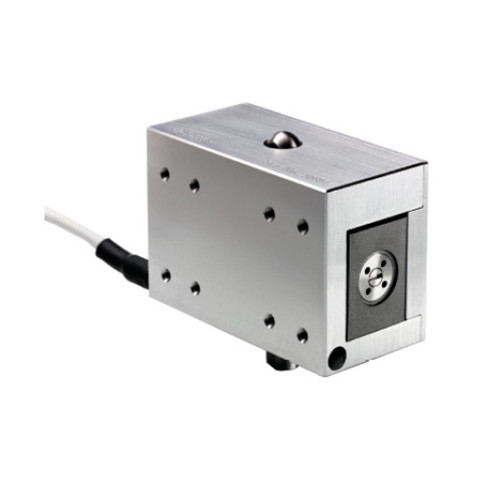

Prior Scientific UHV Nanopositioning Stage with Controller

This nanopositioning ultra high vacuum stage delivers over 100µm of range at 80K and 10^-9 Torr. The stage is designed to operate in closed-loop mode using capacitive positioning sensors. The fast update rate and control algorithms allow for high speed positioning accuracy for dynamic applications that require stage high speed movement. The stage system includes the NPC-D-5200 single channel closed loop controller.

Applications for the NPS-Z-500B-UHV Nanopositioning stage include using it in crystal bending (beamline), using it with monochromators, and using it with synchrotrons.

The Nanopostion Stage NPS-Z-500B-UHV is made to order and the exact specifications of your stage will be provided when you receive it. Typical specifications are as follows:

• Stage Material: Titanium and Aluminum Alloy
• Closed Loop Range at Room Temperature: 550 µm
• Small Signal Settle Time: 15 ms
• Resonant frequency: 170 Hz
• Position Noise (1σ): 1 nm
• Size: 60mm L x 49.5mm W x 30mm H

The NPC-D-5200 Controller is a single channel, piezo actuator controller and has the following specifications:

• Interfacing: Analog command input and position output for compatibility with existing systems. Digital commands over USB or optional RS232C and Ethernet interfaces. Easy to interface via supplied DLL to communicate with external devices.
• Cooling: Convection cooled with temperature controlled fans
• Controller Box Dimensions: 268mm x 194mm x 70mm
• Weight: 1.8kg
• Vacuum components: System includes UHV feed through and an air side stage/ actuator cable available in 1m, 2m, or 3m lengths. Select your desired cable length when ordering.

View the QGNPS-Z-500B-UHV Datasheet.

View the NPC-D-5200 Controller Datasheet.

NOTE: This item is not returnable.

Prior Part # QGNPS-Z-500B-UHV-D1,QGNPS-Z-500B-UHV, QGNPC-D-5200
