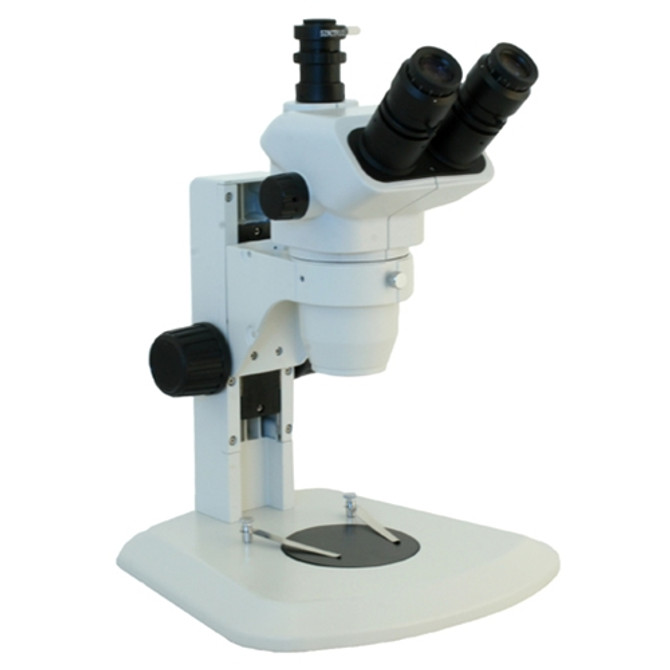

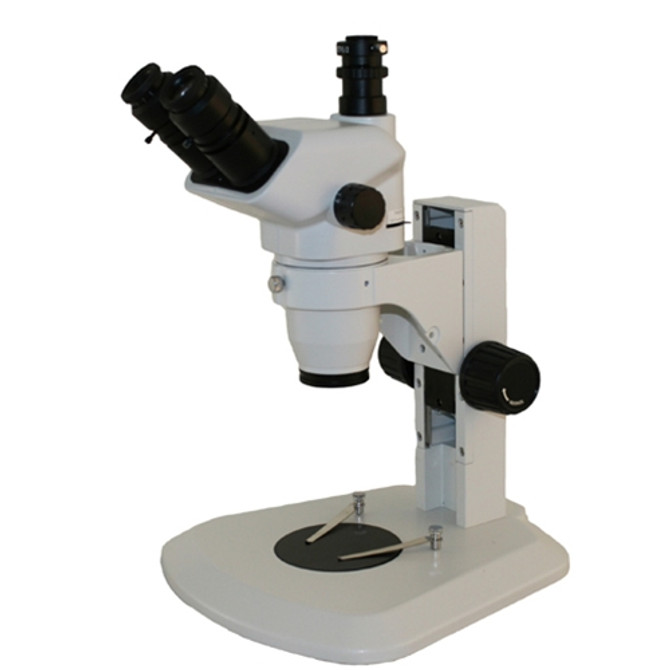

Petrographic Stereo Microscope

The Fein Optic F86PEAC polarizing stereo microscope provides magnification of 6.5x-156x. This microscope system meets the standards for ASTM C295, ASTM C457M and ASTM C856.

• Viewing Head: 45° inclined trinocular viewing head rotates 360º. Light is split 50:50 between eyetubes and trinocular port.
• Eyepieces: Includes high eyepoint widefield 10x eyepieces, FN 24mm with ±5 diopter adjustment on each eye, as well as 15x, FN 16mm eyepieces.
• Objective Lenses: Includes built-in 1x lens and 2x (WD 26mm) auxiliary lens. The microscope head can easily be set up to use click stops, or the stops may be disabled for continuous magnification. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x.
• Total Magnification:

  • When using 10x Eyepieces = 6.5x - 52x
  • When using 15x Eyepieces = 9.75x - 78x
  • When using 15x Eyepieces and 2x Auxiliary Lens = 26x - 156x
• Working Distance: 118mm with no auxiliary lens, 26mm with 2x auxiliary lens
• Specimen Stage: Includes black/white stage plate and 2 stage clips.
• Stand: Track stand with no built-in illumination. Vertical travel of 110mm. Includes dust cover.
• Focusing: Precision guide rack and pinion focusing with tension adjustable focus knobs.

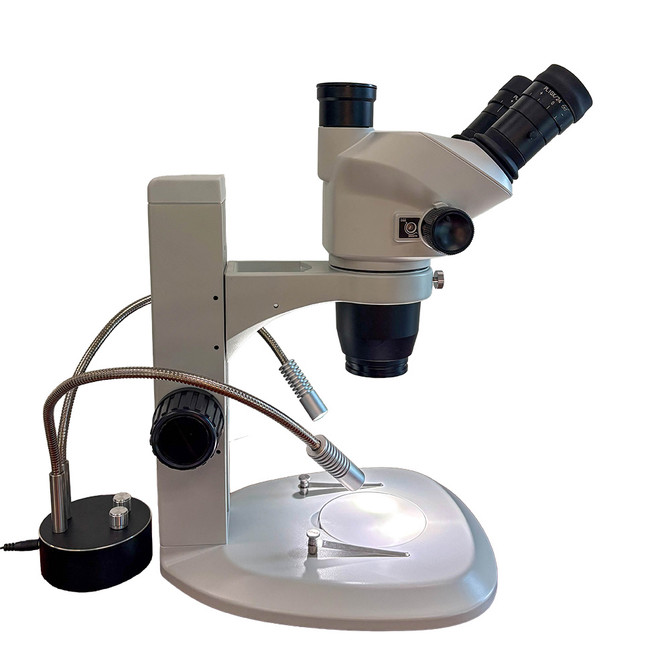

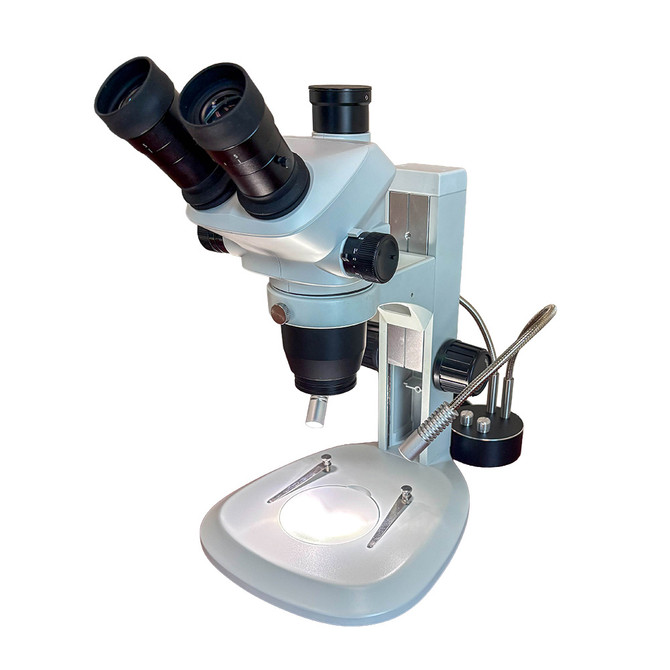

• Illumination: Includes LED dual gooseneck pipe light illuminator.
• Size: 11.75" W x 12" D x 12.5" H
• C-Mount Adapter: Includes 0.5x c-mount adapter for camera connection.
• Camera: Includes 5.1 megapixel USB3 microscope camera with image management and measurement software.
• Warranty: 5 years on microscope excluding electrical parts and 1 year on camera and LED pipe lights.
