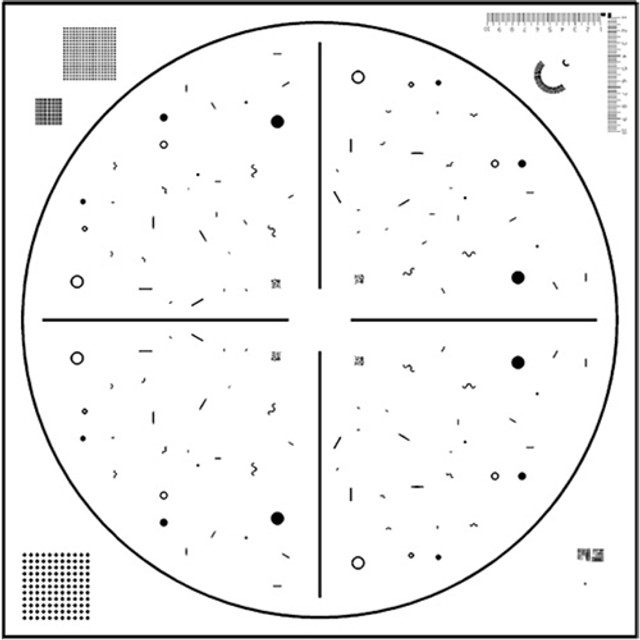

Opto Micro V2 Calibration Target

Opto Micro V2 calibration target contains a wide variety of specific patterns used during calibration and resolution tests for measuring optical metrics. These patterns allow for efficient and accurate optimization of optical settings.

• Structure: high reflective chrome on glass
• Minimum structure: 0.5 µm
• Maximum structure: 600 µm
• Structure shapes: Various shapes, refer to datasheet.
• Scale: X / Y direction with an accuracy of +/- 0.5 µm
• Size / Weight: 76 x 26 x 4.5 mm / 17g
• Supplied in a custom padded storage case
• DKD Certificate available

View the Opto Micro V2 Calibration Target datasheet.

Opto Part # = 045-200200, 045-200200-DKD

NOTE: This item is not returnable.
