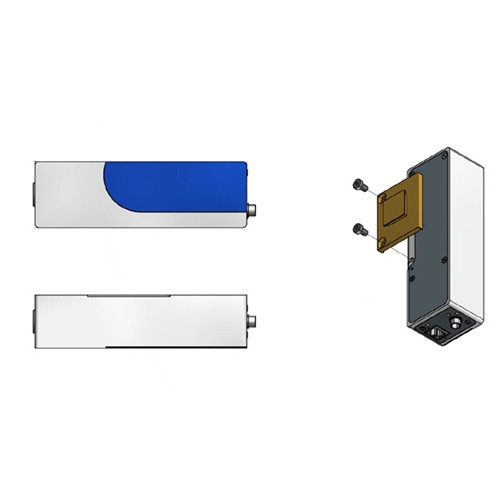

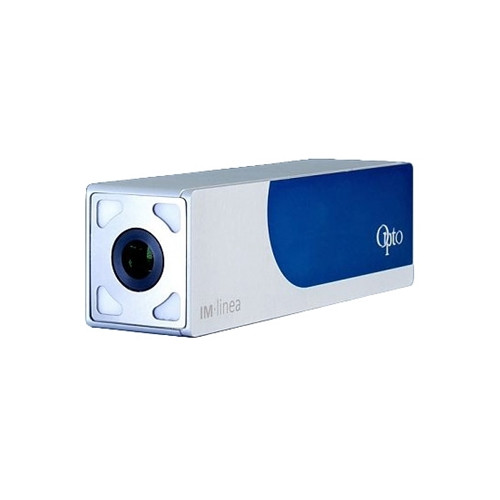

Opto IM-Linea M Imaging Module
The IM-linea M from Opto is a sleek digital microscope with camera, optics and illumination in an efficient and compact linear arrangement.. The robust aluminu…
SKU:
IM-Linea M
Contact Microscope World for a Quote
The IM-linea M from Opto is a sleek digital microscope with camera, optics and illumination in an efficient and compact linear arrangement.. The robust aluminum housing includes an apochromatically corrected objective, a sensitive CMOS sensor, optional ring light illuminator and requires just a single USB connector for both power and data transmission.
- Field of View: 28.7mm x 24mm to 7.7mm x 5.8mm depending on selected optics.
- Resolution: 125 LP/mm to 20 LP/mm depending on selected optics.
- Working Distance: 202mm to 87mm depending on selected optics.
- Illumination: Optional integrated LED ring light illuminator.
- Stand: Multiple stand options available including table, gantry, and boom stands.
- Sensor: Sony Pregius IMX265 (3MP) or IMX264 (5MP), monochrome or color.
- Sensor Size: 2048 x 1536 / 1/1.8” (IMX265) or 2448 x 2048 / 2/3” (IMX264).
- Frame Rate: 37 fps (IMX265) or 24 fps (IMX264).
- Pixel Size: 3.45µm.
- Software: OptoViewer 2.0 software included. Plugins available for various applications.
- Interface: USB3.1 Gen 1 type C or GigE RJ45, 24V, M8 Plug.
- Dimensions: 40mm W x 50mm L x 160mm H.
- Weight: 1.1 lb (500g)
- Country of Origin: Germany
- View the Opto IM Linea M Datasheet
Description
The IM-linea M from Opto is a sleek digital microscope with camera, optics and illumination in an efficient and compact linear arrangement.. The robust aluminum housing includes an apochromatically corrected objective, a sensitive CMOS sensor, optional ring light illuminator and requires just a single USB connector for both power and data transmission.
- Field of View: 28.7mm x 24mm to 7.7mm x 5.8mm depending on selected optics.
- Resolution: 125 LP/mm to 20 LP/mm depending on selected optics.
- Working Distance: 202mm to 87mm depending on selected optics.
- Illumination: Optional integrated LED ring light illuminator.
- Stand: Multiple stand options available including table, gantry, and boom stands.
- Sensor: Sony Pregius IMX265 (3MP) or IMX264 (5MP), monochrome or color.
- Sensor Size: 2048 x 1536 / 1/1.8” (IMX265) or 2448 x 2048 / 2/3” (IMX264).
- Frame Rate: 37 fps (IMX265) or 24 fps (IMX264).
- Pixel Size: 3.45µm.
- Software: OptoViewer 2.0 software included. Plugins available for various applications.
- Interface: USB3.1 Gen 1 type C or GigE RJ45, 24V, M8 Plug.
- Dimensions: 40mm W x 50mm L x 160mm H.
- Weight: 1.1 lb (500g)
- Country of Origin: Germany
- View the Opto IM Linea M Datasheet
