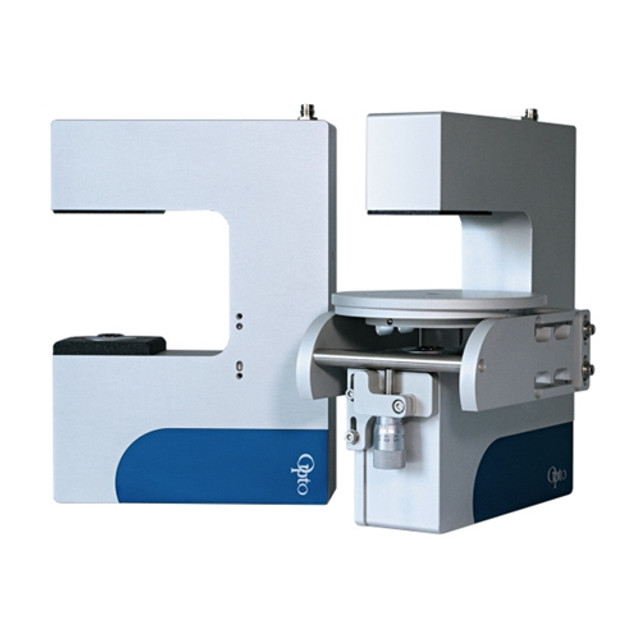

Opto IM-Profile M Imaging Module
The IM-profile M from Opto is a fully self-contained ultra-compact microscopic imaging module with integrated LED illumination designed for transmitted light applications. The robust aluminum...

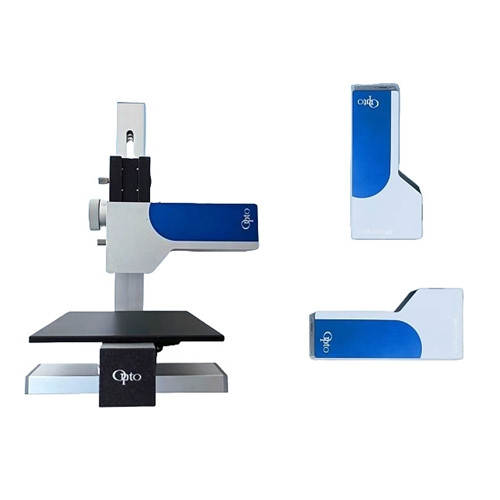

Opto IM-Compact M Imaging Module
The IM-compact M from Opto is a fully self-contained microscopic imaging module measuring only 40mm x 80mm x 175mm. The robust aluminum housing includes an apoc…
SKU:
IM-Compact M
Contact Microscope World for a quote.
The IM-compact M from Opto is a fully self-contained microscopic imaging module measuring only 40mm x 80mm x 175mm. The robust aluminum housing includes an apochromatically corrected objective, a sensitive CMOS sensor, optional coaxial and ring light illuminator and requires just a single USB connector for both power and data transmission.
- Field of View: 28.6 mm x 24 mm to 1.9 mm x 1.4 mm depending on selected optics.
- Resolution: 500 LP/mm to 20 LP/mm depending on selected optics.
- Working Distance: 202 mm to 37 mm depending on selected optics.
- Illumination: Optional integrated LED illuminators for both coaxial incident and ring light illumination.
- Stand: Multiple stand options available including table, gantry, and boom stands.
- Sensor: Sony Pregius IMX265 (3MP) or IMX264 (5MP), monochrome or color.
- Sensor Size: 2048 x 1536 / 1/1.8” (IMX265) or 2448 x 2048 / 2/3” (IMX264).
- Frame Rate: 37 fps (IMX265) or 24 fps (IMX264).
- Pixel Size: 3.45µm.
- Software: OptoViewer 2.0 software included. Plugins available for various applications.
- Interface: USB3.1 Gen 1 type C or GigE RJ45, 24V, M8 Plug.
- Dimensions: 40mm W x 175mm L x 80mm H.
- Weight:1.5 lb (700g)
- Country of Origin: Germany
- View the Opto IM Compact M Datasheet
Description
The IM-compact M from Opto is a fully self-contained microscopic imaging module measuring only 40mm x 80mm x 175mm. The robust aluminum housing includes an apochromatically corrected objective, a sensitive CMOS sensor, optional coaxial and ring light illuminator and requires just a single USB connector for both power and data transmission.
- Field of View: 28.6 mm x 24 mm to 1.9 mm x 1.4 mm depending on selected optics.
- Resolution: 500 LP/mm to 20 LP/mm depending on selected optics.
- Working Distance: 202 mm to 37 mm depending on selected optics.
- Illumination: Optional integrated LED illuminators for both coaxial incident and ring light illumination.
- Stand: Multiple stand options available including table, gantry, and boom stands.
- Sensor: Sony Pregius IMX265 (3MP) or IMX264 (5MP), monochrome or color.
- Sensor Size: 2048 x 1536 / 1/1.8” (IMX265) or 2448 x 2048 / 2/3” (IMX264).
- Frame Rate: 37 fps (IMX265) or 24 fps (IMX264).
- Pixel Size: 3.45µm.
- Software: OptoViewer 2.0 software included. Plugins available for various applications.
- Interface: USB3.1 Gen 1 type C or GigE RJ45, 24V, M8 Plug.
- Dimensions: 40mm W x 175mm L x 80mm H.
- Weight:1.5 lb (700g)
- Country of Origin: Germany
- View the Opto IM Compact M Datasheet
