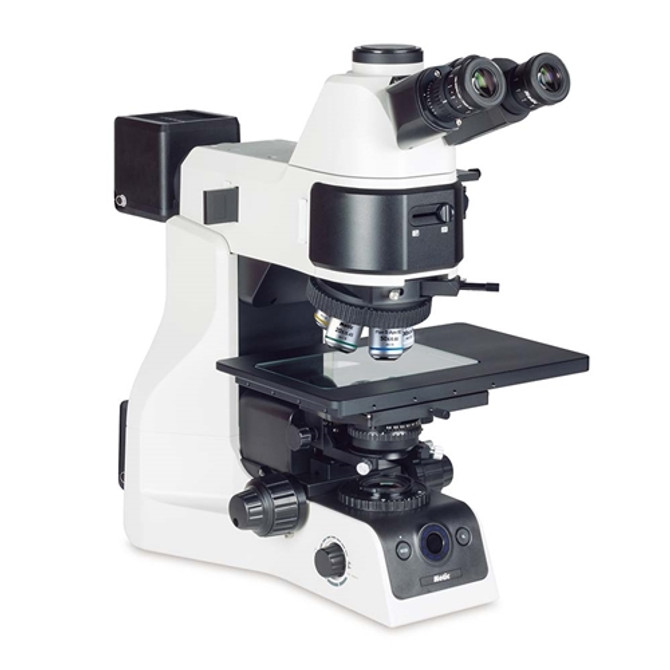

The Motic PA53 MET microscope is designed for metallurgical applications. Choose from reflected light only or reflected/ transmitted light. This microscope is designed to easily change observation modes between brightfield and darkfield with a converter switch. NOTE: Please contact us for regional availability.
- Objective Lenses: Scalable Infinity-Corrected Optical System (CCIS) brightfield/darkfield metallurgical objectives:
- Plan S-APO BD 5x/0.15, WD = 17.7mm
- Plan S-APO BD 10x/0.30, WD = 12mm
- Plan S-APO BD 20x/0.50, WD = 2.35mm
- Plan S-APO BD 50x/0.80, WD = 1mm
- Viewing Head: Erect type (F.N 25) Trinocular head 20º inclined, Light path to eyepieces/camera either 100:0 or 0:100
- Eyepieces: 10x eyepieces/ 25mm, accepts 25mm diameter reticle. Adjustable diopters.
- Total Magnification: 50x, 100x, 200x, 500x.
- Specimen Stage: 4x4 inch stage, with 210 (W)x 170(D) mm specimen size, stroke 104(X) x 102(Y) mm, with a metal plate for transmitted light or glass plate for transmitted/ reflected light
- Focusing: Manual coarse and fine focusing. Coarse: 17.7 mm/ revolution, Fine: 0.1 mm/revolution (1 µm scale)
- Illumination:
- Reflected: Koehler illumination system Brightfield / Darkfield, Normanski DIC, simple polarized. Light source: 12V, 100W Halogen bulb
- Transmitted: Koehler illumination system Brightfiled built-in filters, 12V 100W halogen bulb with an Abbe condenser with NA=1.20
- Stand Features: Five-position nosepiece with DIC slot.
- Size & Weight: 9.7" W x 22.5" H x 20.2" D, 42 lb.
- Warranty: 5 years on microscope parts. 1 year warranty on electrical, electronic components, and digital cameras.
View the Motic PA53MET Product Brochure.
