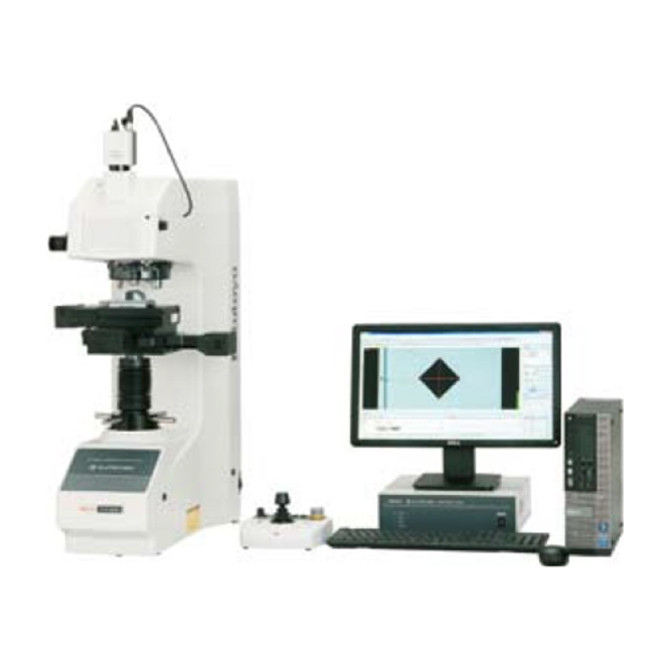

Mitutoyo Vickers Hardness Tester HV120 Type D

This Mitutoyo Vickers Hardness Testing machine features a motorized X-Y stage and a motorized focusing platform for automatic focus. The system has AVPAK dedicated image analysis software enabling automatic indentation reading with excellent automatic edge detection capability that helps eliminate reading variations and visual errors. A simple and powerful report generator allows easy data customization.

Contact Microscope World for a quote including shipping to your location.

• Test Force 2.942N (0.3kgf), 4.903N (0.5kgf), 9.807N (1kgf), 24.51N (2.5kgf), 49.03N (5kgf), 98.07N (10kgf), 196.1N (20kgf), 294.2N (30kgf)
• Supported Test Method HV, HK, HB (Light Force - optional test forces may be required), Kc
• Test Force Switching Method Motorized
• Field of View 590 x 443µm with 10x lens

• Objective Lens 10x (optional 2x, 5x, 20x, 50x, 100x available below)
• Focusing Automatic
• Stage Motorized X-Y Stage 100 x 100mm.
• Turret Lens Mount Up to 3 objectives, automatic rotation
• Total Magnification 100x (20x-1000x available with different objectives)
• Display Via PC (not included)
• Curvature Correction 0.01 to 200.00mm
• Maximum Sample Height 132mm Type D
• Maximum Sample Depth 160mm
• Maximum Sample Weight 3 Kg Type D
• Optical Path 100% Eyetube or Camera
• Camera Color, high resolution 3mp camera produces crisp images that are automatically measured in less the 0.3 seconds.
• Software AV/Pak-10 Software for image analysis is included and can control the system providing seamless handling such as screen layout for control, testing status and result display.
• Output USB2.0
• Power Supply 120V AC/60 Hz
• Illumination LED
• Hardness Conversion Functions 8 types including ISO, ASTM, SAE, BS
• Dimensions of Main Unit (WxDxH) 9.9" x 24.7" x 30.7" (252 x 627 x 781mm)
• Weight 110 lbs (50kg)

Mitutoyo part #810-448A + 11AAE268-USE + 810-465 + 810-462-10

NOTE: This is a special order item and is not returnable.
