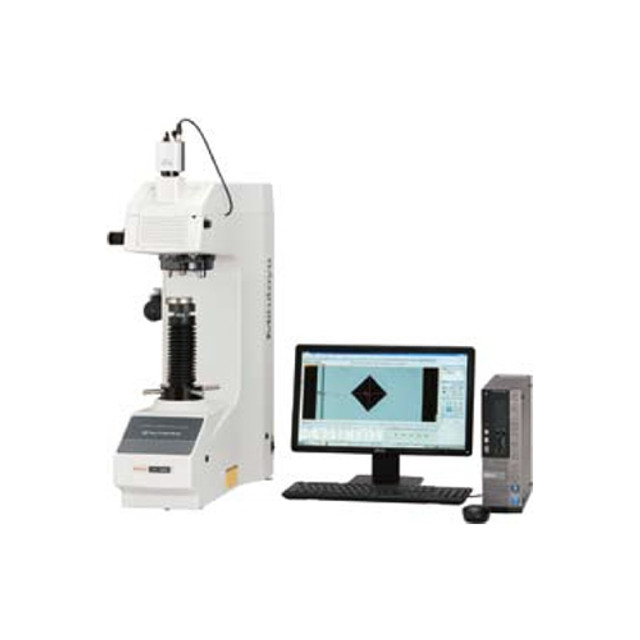

Mitutoyo Vickers Hardness Tester HV110 Type B

This Mitutoyo Vickers Hardness Testing machine features AVPAK dedicated image analysis software enabling automatic indentation reading with excellent automatic edge detection capability that helps eliminate reading variations and visual errors. A simple and powerful report generator allows easy data customization.

Contact Microscope World for a quote including shipping to your location.

• Test Force 9.807N (1kgf), 19.61N (2kgf), 29.42N (3kgf), 49.03N (5kgf), 98.07N (10kgf), 196.1N (20kgf), 294.2N (30kgf), 490.3N (50kgf)
• Supported Test Method HV, HK, HB (Light Force - optional test forces may be required), Kc
• Test Force Switching Method Motorized
• Field of View 590 x 443µm with 10x lens

• Objective Lens 10x (optional 2x, 5x, 20x, 50x, 100x available below)
• Focusing Manual
• Stage: Manual X-Y
• Turret Lens Mount Up to 3 objectives, automatic rotation
• Total Magnification 100x (20x-1000x available with different objectives)
• Display Via PC (not included)
• Curvature Correction 0.01 to 200.00mm
• Maximum Sample Height 172mm Type B
• Maximum Sample Depth 160mm
• Maximum Sample Weight 10 Kg Type B
• Optical Path 100% Eyetube or Camera
• Camera Color, high resolution 3mp camera produces crisp images that are automatically measured in less the 0.3 seconds.
• Software AV/Pak-10 Software for image analysis is included and can control the system providing seamless handling such as screen layout for control, testing status and result display.
• Output USB2.0
• Power Supply 120V AC/60 Hz
• Illumination LED
• Hardness Conversion Functions 8 types including ISO, ASTM, SAE, BS
• Dimensions of Main Unit (WxDxH) 9.9" x 24.7" x 30.7" (252 x 627 x 781mm)
• Weight 110 lbs (50kg)

Mitutoyo part #810-443A and 11AAE268-USE

NOTE: This is a special order item and is not returnable.
