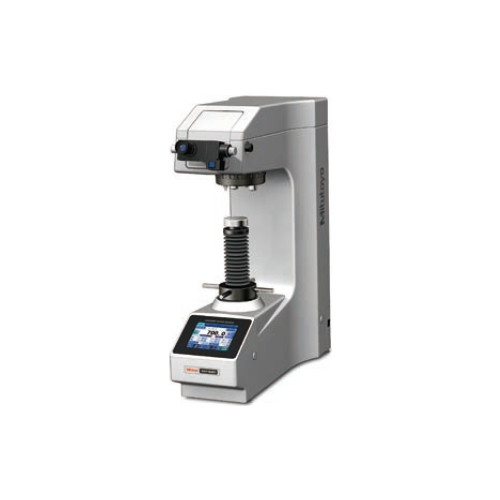

Mitutoyo Vickers Hardness Tester HV110 Type A

This Mitutoyo Vickers Hardness Testing machine features motorized force selection from 1-50kgf. Fully adjustable long-life LED illumination runs cool. A dual-line filar eyepiece combines with a color touch-screen LCD to create accurate measurements with the touch of a button. The motorized turret can accommodate up to 3 LWD objective lenses (available below along with additional accessories).

Contact Microscope World for a quote including shipping to your location.

• Test Force 9.807N (1kgf), 19.61N (2kgf), 29.42N (3kgf), 49.03N (5kgf), 98.07N (10 kdg), 196.1N (20kgf), 294.2N (30 kgf), 490.3N (50kgf)
• Supported Test Method HV, HK, HB (Light Force - optional test forces may be required), Kc
• Test Force Selection Motorized
• Loading Accuracy +/-1%
• Load Control 60µ/s, 150µ/s Automatic (loading, duration, unloading)
• Load Rate 5-999 sec.
• Objective Lens 10x (optional 2x, 5x, 20x, 50x, 100x available below)
• Total Magnification 100x (20x-1000x available with different objectives)
• Field of View 1,400µ (10x Lens) Type A
• Minimum Reading < 50x = 0.1µm, ≥ 50x = 0.01µm
• Display Color LCD Touch-Screen
• Scaled Version 8 Types (ASTM, ISO, JIS, SAE, and BS)
• Statistics N, Max., Min., Average, Range, High, Low, Good, Over, Under, SD(n-1), SD(n), go/no-go judgement
• Curvature Correction 0.01 to 200.00mm
• Maximum Sample Height 210mm Type A
• Maximum Sample Depth 160mm
• Maximum Sample Weight 20 Kg Anvil, 10 Kg with x-y stage
• Optical Path 100% Eyetube or Camera
• Output Rs232, SPC, USB2.0
• Power Supply 120V AC/60 Hz
• Dimensions of Main Unit (WxDxH) 9.9" x 24.7" x 30.7" (252 x 627 x 781mm)
• Weight 110 lbs (50kg)

Mitutoyo part #810-441A (formerly 810-440A)

NOTE: This is a special order item and is not returnable.
