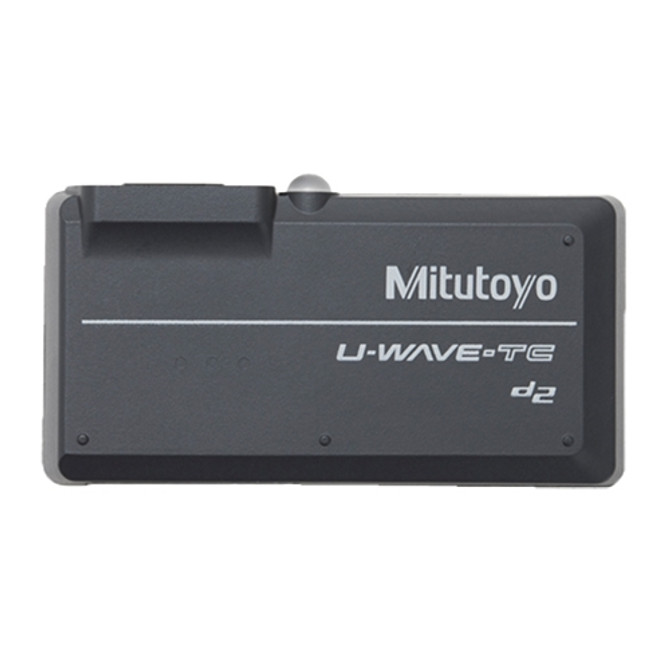

Mitutoyo U-Wave-TC Caliper Transmitter Package Buzzer

The Mitutoyo U-Wave Fit U-Wave-TC Transmitter Package includes the U-Wave-TC Transmitter and the U-Wave-Fit connection unit for a standard model caliper. The U-Wave-TC transmitter connects to a digimatic Mitutoyo standard caliper and is designed to fit in the space behind the display. The connecting cable has been replaced by a rigid connector. Note this transmitter is not intended for use with an IP67 caliper.

To complete the U-Wave measurement data wireless communication system, the U-Wave-R Receiver is required. This item is sold separately.

 The U-Wave-TC Transmitter Package has the following features:

• Data reception indication Buzzer and LED (green, red, orange).
• Communication distance up to 20 meters within visible range.
• Communication speed 250 kbps
• Communication frequency 2.4 GHz band (2.405-2.475 GHz, 15 channels (5 MHz interval)
• Wireless communication protocol Proprietary (2.4 GHz by original specification based on IEEE 802.15.4)
• Power supply Battery
• Modulation method DS-SS (Direct Sequence Spread Spectrum)
• Transmission output 2.5 mW (4dBm) or below
• OS compatibility Windows 2000 Professional, Windows XP Professional, Windows XP Home Edition, Windows Vista, Windows 7 (32bit, 64bit) Windows 8, 8.1, 10 (32bit, 64bit).
• Dimensions 56 x 30.4 x 11.5mm

Mitutoyo Part # 264-621-BZ-S
NOTE: This item is not returnable.
