Mitutoyo U-Wave-T SPC Connecting Cable

The Mitutoyo U-Wave-T connecting cables connect the U-Wave-T transmitter to your specific Mitutoyo digimatic tool. A complete U-Wave measurement data wireless communication system will consist of the following 3 items:

1. U-Wave-R Receiver
2. U-Wave-T Transmitter
3. U-Wave-T Connecting Cable (this product - see table below for cable specifics)

The U-Wave-T cable connects your Mitutoyo digimatic tool with the U-Wave-T transmitter device.

Cable length = 160mm (6.3")

Fastening clip included with cable.

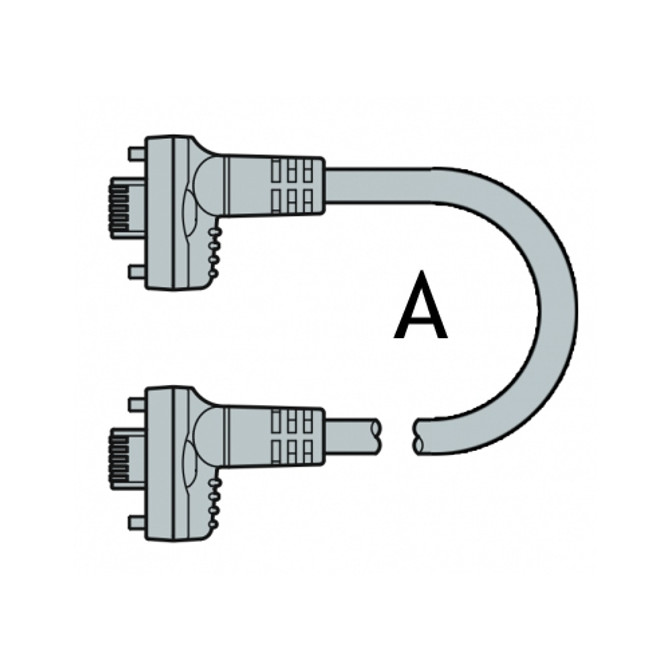

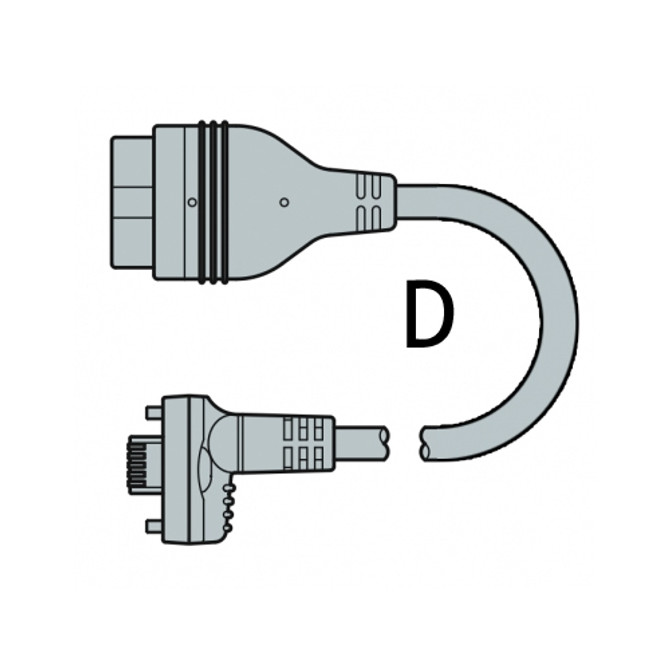

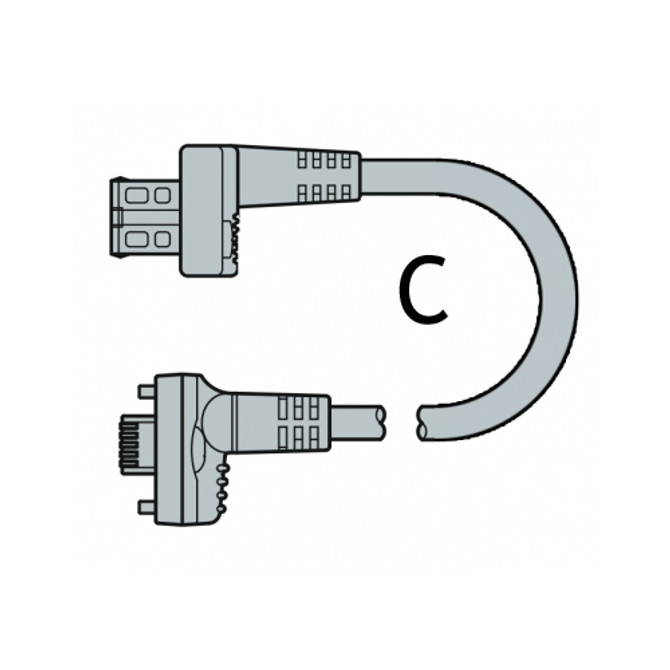

Cable Type:	A	B	C	D	E	F	G
Mitutoyo Part #:	02AZD790A	02AZD790B	02AZD790C	02ZAD790D	02AZD790E	02AZD790F	02AZD790G
Socket Shape on Measuring Tool:
Measuring Instruments:	Digimatic Caliper & Super Caliper 500 Series: CD67-S_PM CD-PMX/PM/GM 550/551 Series: CDC-P_PMX CDN-P_PMX Digimatic Carbon Fiber Caliper 552 Series: CFC-G/GL/GC/GU Digimatic Depth Gage 571 Series: VDS-PMX Digimatic Scale Unit 572 Series: SD-G Digimatic Exclusive Caliper 573 Series: NTD-PMX/PM	Digimatic Micrometer, QuantuMike 293 Series: MDC-MJ/MJB/MJT MDE-MJ Tubular Inside Micrometer 337 Series: IMZ-MJ 339 Series: IMJ-MJ Digimatic Micrometer Head 350 Series: MHN-MB/MJB/ MJNB Digimatic Exclusive Micrometer End mark is MJ/MJB/M/MB/ PM/PMB Digimatic Holtest 468 Series: HTD-R	Digimatic Micrometer Head 164 Series: MHD-MB Digimatic Caliper 500 Series: CD-CX/C/ S_C 550/551 Series: CDC-C/CX, CDN-C/CX Digimatic Depth Gage 571 Series: VDS-DCX/DC Digimatic Scale Unit 572 Series: SD-D/SDV-D Digimatic Exclusive Caliper 573 Series: End of mark is CX/C	Surface Roughness Tester 178 Series: SJ-201/210/ 301/400/500 Coating Thickness Gage 179 Series: DGE-745/755 Linear Height 518 Series: QMH-S Reference Gage 515 Series: HMD-C Digimatic Indicator 543 Series: ID-H Laser Scan Micrometer 544 Series: LSM-9506/ 6100/6200/ 6900 µ Checker Digital µ Checker (using foot switch)	Digimatic Micrometer 121 Series: BD 164 Series: MHD-M 227 Series: CLM 293 Series: MDQ-M MDC-M Tubular Inside Micrometer 337 Series: IMZ-M 339 Series: IMJ-M Digimatic Holtest 468 Series: HTD Reference Gage 515 Series: HME-DM Borematic 568 Series: SBM-C Hardness Testing Machines 810 Series: HM-100/200 HV-100/HH-411 HR-500	Digimatic Height Gage 192/570/574 Series: HDM-A/AX HD-A/AX HDS-H_C/C HDF-N Digimatic Caliper 500/550/551 Series: CD/CDC/CDN Digimatic Bore Gage 511 Series: CG-D Digimatic Indicator 543 Series: ID-C_X/_RB/ _GB Digimatic Depth Gage/ Thickness Gage 547 Series Digimatic Model ID-CX Digimatic Carbon Fiber Caliper 552 Series: CFC-P/-L/-C/ -U Digimatic Scale Unit 572 Series: SD-E, SDV-E SD-F, SDV-F Portable Hardness Testing 811 Series: HH-300	Digimatic Indicator 543 Series: ID-N ID-B
				Measuring Instrument models with NO data switch:
				Digimatic Indicator 543 Series: ID-F Linear Gage/ Counter 542 Series: EF-PRH/ZR EH-P/Z/S/D EB-P/Z/D EC-D Litematic 318 Series: VL-A/AS/AH		Digimatic Indicator 543 Series: ID-C/S/C_A Digimatic Depth Gage/ Thickness Gage 547 Series: Digimatic Model ID-C 575 Series: ID-U

NOTE: This item is not returnable.
