Mitutoyo SurfaceMeasure I/O Cable
Mitutoyo SurfaceMeasure I/O Cable
Mitutoyo SurfaceMeasure I/O Cable

Mitutoyo SurfaceMeasure I/O Cable

No reviews yet Write a Review
This cable is used to connect the external I/O device to the sensor. Note the sensors cannot be synchronized by the signals input to and output from each sensor…

Read more
SKU:
$617.00 - $2,504.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

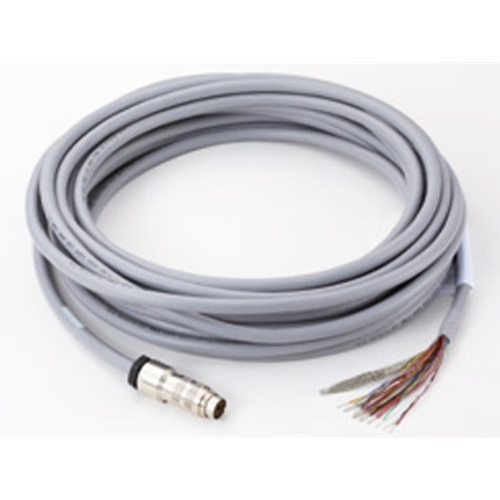

This cable is used to connect the external I/O device to the sensor. Note the sensors cannot be synchronized by the signals input to and output from each sensor through this cable.

  • Sensor Side M16 connector. Straight or 90º upward-pointing can be selected.
  • I/O Device Side Flying lead
  • Communication Side Encoder input; 2 phase square-wave signals, Phase A, Phase B, Phase Z. Trigger input, Digital output, RS-485 output.
Part Number Product Name Description
 02AQL361 2m I/O Open wire end
 02AQL362 5m I/O Open wire end
 02AQL363 10m I/O Open wire end
02AQL364 15m I/O Open wire end
02AQL365 20m I/O Open wire end
02AQL366 25m I/O Open wire end
02AQL379 2m I/O 90º Open wire end, 90º connector
 02AQL380 5m I/O 90º Open wire end, 90º connector
 02QAL381 10m I/O 90º Open wire end, 90º connector
 02QAL382 15m I/O 90º Open wire end, 90º connector
 02QAL383 20m I/O 90º Open wire end, 90º connector
 02QAL384 25m I/O 90º Open wire end, 90º connector



Mitutoyo part # = 02AQL361, 02AQL362, 02AQL363, 02AQL364, 02AQL365, 02AQL366, 02AQL379, 02AQL380, 02AQL381, 02AQL382, 02AQL383, 02AQL394
NOTE: This item is not returnable.

Customer reviews

This product hasn't received any reviews yet. Be the first to review this product!

Write a Reviews

Description

This cable is used to connect the external I/O device to the sensor. Note the sensors cannot be synchronized by the signals input to and output from each sensor through this cable.

  • Sensor Side M16 connector. Straight or 90º upward-pointing can be selected.
  • I/O Device Side Flying lead
  • Communication Side Encoder input; 2 phase square-wave signals, Phase A, Phase B, Phase Z. Trigger input, Digital output, RS-485 output.
Part Number Product Name Description
 02AQL361 2m I/O Open wire end
 02AQL362 5m I/O Open wire end
 02AQL363 10m I/O Open wire end
02AQL364 15m I/O Open wire end
02AQL365 20m I/O Open wire end
02AQL366 25m I/O Open wire end
02AQL379 2m I/O 90º Open wire end, 90º connector
 02AQL380 5m I/O 90º Open wire end, 90º connector
 02QAL381 10m I/O 90º Open wire end, 90º connector
 02QAL382 15m I/O 90º Open wire end, 90º connector
 02QAL383 20m I/O 90º Open wire end, 90º connector
 02QAL384 25m I/O 90º Open wire end, 90º connector



Mitutoyo part # = 02AQL361, 02AQL362, 02AQL363, 02AQL364, 02AQL365, 02AQL366, 02AQL379, 02AQL380, 02AQL381, 02AQL382, 02AQL383, 02AQL394
NOTE: This item is not returnable.
