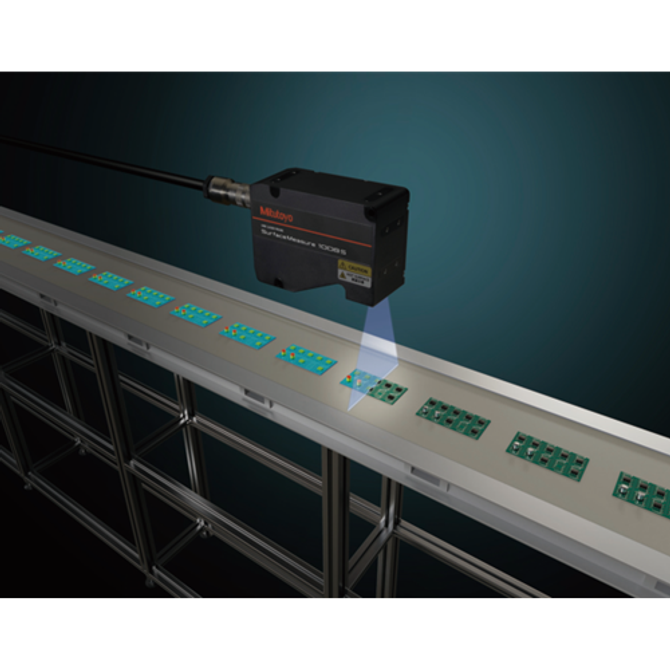

The Mitutoyo SurfaceMeasure 1008S is a non-contact line laser sensor ideal for use in tire shape inspection, electrical adhesive inspection, electric vehicle battery cell assembly inspection, food industry inspection, electronics connector pin inspection, and automotive panel gap inspection. The SurfaceMeasure uses a unique optical system with conventional sensor technology to produce 2D profile measurements to 3D dimensional inspections. The sensor has guaranteed accuracy of 20µm and Z repeatability of 0.5µm.
Learn more about how SurfaceMeasure works and applications for this product here.
- Maximum measuring width: 100mm
- Measuring range: 80mm
- Working distance: 80mm
- Scanning error: 20µm
- Frame rate: Max. 10kHz
- Laser class:
- EN/IEC: Class 2, EN/IEC 60825-1: 2014
- JIS: Class 2, JIS C 6802: 2014
- Line laser:
- Laser medium: Semiconductor laser
- Wavelength: 405 nm (visible)
- Max. output: 2.2 mW
- Software: on-board software features an array of measurement tools including height, width, volume, flatness, pattern matching, gap and flush, and more that are included as standard functions with the SM1008S. The software also comes with features such as Optical Character Recognition, barcode reading, and various defect detection tools, including blob and weld/glue bead inspection.
- Mass: 650g
- Operating environment:
- Temperature: 0ºC to 40ºC
- Humidity: RH 20 to 80%, non-condensing
- Storage environment:
- Temperature: -30ºC to 70ºC
- Humidity: RH 20 to 95%, non-condensing
- IP code: IP 67
- Power supply: 24 to 48 VDC (15W)
- Dimensions: refer to above diagram
View the Mitutoyo SurfaceMeasure 1008S Brochure.
Mitutoyo Part #s: 553-100
NOTE: This item is not returnable.
