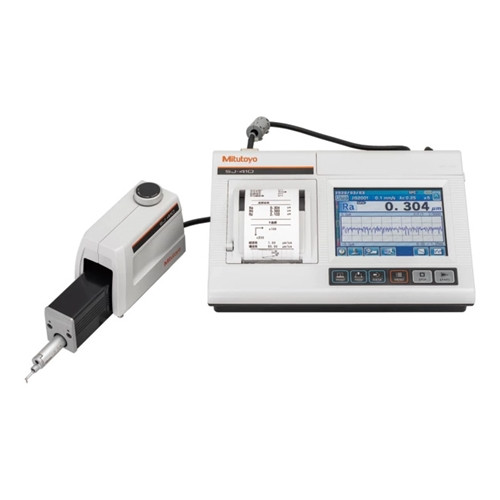

Mitutoyo SJ-411 4mN Force Surftest Standard Drive Unit

This Mitutoyo SJ-411 portable surface roughness tester has 46 roughness parameters that can be tested, which conform to the latest ISO, DIN, ANSI, and JIS standards. It features a 5.7" LCD touch-panel screen with backlighting for improved visibility in dark environments. A column stand is available for this product.

Here are some of the specifications of the Suftest SJ-411:

• Measuring range, X Axis: 25mm/ 1"
• Measuring range, Z axis: 800µm, 80µm (8µm/ 32000µin, 3200µin, 320µin)
• Stylus Tip Shape of Detector (Angle/ Radius): 90º/ 5µm (200µin)
• Detector Measuring Force:4mN
• Drive Unit Measuring Speed (X axis): 0.05, 0.1, 0.2, 0.5, 1.0mm/s (0.002, 0.004, 0.02, 0.04 inch/s)
• Drive Unit Drive Speed (X axis): 0.5, 1, 2, 5mm/s (0.02, 0.04, 0.08, 0.2 inch/s)
• Drive Unit Straightness (X axis): 0.3µm / 25mm (12µin / 1")
• Up/ down Inclination Unit Vertical travel: 10mm (0.39")
• Up/ down Inclination Adjustment Angle: ±1.5º
• Sampling Length: 0.08, 0.25, 0.8, 2.5, 8, 25 mm (0.003, 0.01, 0.03, 0.1, 0.3, 1")
• External dimensions, calculation display unit (W x D x H): 275mm x 198mm x 109mm (10.83" x 7.80" x 4.29")
• External dimensions, up/down inclination unit (W x D x H): 131mm x 63mm x 99mm (5.16" x 2.48" x 3.9")
• External dimensions, drive unit (W x D x H): 128mm x 35.8mm x 46.6mm (5.04" x 1.41" x 1.83")
• Mass, calculation display unit: 1.7kg
• Mass, up/down inclination unit: 0.4kg
• Mass, drive unit: 0.6 kg

Click here for a full list of SJ-411 Surftest Series Specifications.

Learn about data collection options using the Surftest system.

Mitutoyo part # 178-581-32A

NOTE: This is a special order item and is not returnable.
