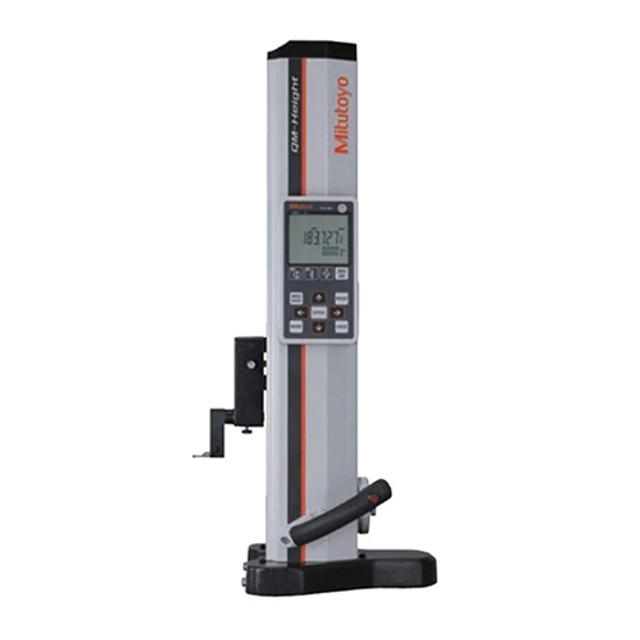

Mitutoyo QM Height Gage 14" / 350mm

This digital height gage provides quick go/no-go judgments and includes an ABSOLUTE encoder. It is used for measuring maximum and minimum heights, inside/outside widths and diameters and circle pitch.

Contact Microscope World for a quote on this item that includes freight to your location.

Contact Microscope World for information on having this instrument calibrated.

• Measuring range(stroke) 14" / 350mm
• Resolution 0.001mm, 0.005mm, 0.00005", 0.0001", 0.0002"
• Measurement (accuracy at 20ºC) +/-(2.4 + 2.1L/600) µm
• Repeatability (accuracy at 20ºC) 2o ≤ 1.8µm
• Perpendicularity*2 (20ºC) 7µm
• Guiding method Roller bearing
• Drive method Manual (wheel)
• Measurement principal Electromagnetic induction ABSOLUTE encoder
• Measuring force 1.5+/-0.5 N
• Data output ports Digimatic / Digimatic 2 / USB*3
• Power supply AC adapter (includes 4 standard Alkaline AA/LR6 batteries)
• Mass 25 kgs
• Size 280(W) x 273(D) x 784(H) MM
• Operating temperature range 0 to 40ºC (10 to 30ºC is recommended)
• Operating humidity range 20 to 80% RH (non-condensing)
• Storage temperature range -10ºC to 50ºC
• Storage humidity range 5 to 90% RH (non-condensing)
• Standard accessories Includes Probe diameter calibration block (12AAA715) and Ø5mm stepped probe (05HZA148).

Mitutoyo part# 64PKA094C (Former part# 64PKA094B)
NOTE: This item is not returnable. This item does not have free shipping, please contact us for a quote for shipping on this item.
