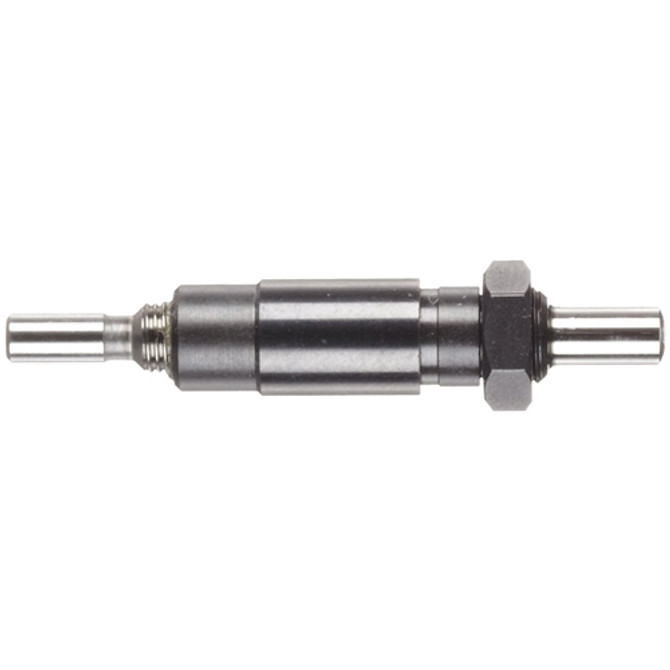

Mitutoyo Precision Lead Screw 13mm Stroke
Mitutoyo Precision Lead Screw 13mm Stroke
Mitutoyo Precision Lead Screw 13mm Stroke
Mitutoyo Precision Lead Screw 13mm Stroke
Mitutoyo Precision Lead Screw 13mm Stroke
Mitutoyo Precision Lead Screw 13mm Stroke

Mitutoyo Precision Lead Screw 13mm Stroke

No reviews yet Write a Review
These Mitutoyo precision lead screws are available in AS or BS types. AS type features a flat spindle tip without a nut and the BS type features a spherical spi…

Read more
SKU:
$100.00 - $115.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

These Mitutoyo precision lead screws are available in AS or BS types. AS type features a flat spindle tip without a nut and the BS type features a spherical spindle tip with a nut. Precision lead screws are an economical and simple instrument for precise positioning mechanisms, fine feed mechanisms, and conventional micrometer heads.

  • Range 0-13mm
  • Feed pitch 0.5mm
  • Feed accuracy ± 2µm
  • Stem diameter Ø9.5 0 -0.009
  • Tip diameter Ø5
  • Tail diameter Ø5 0-0.012
  • Screw nominal diameter M7.35 x 0.5
  • Sleeve diameter Ø10.5
  • Measuring face hardened
  • Mass 27g (04AZA162), 30g (04AZA163)

Mitutoyo Part # = 04AZA162, 04AZA163

NOTE: This item is not returnable.
