Mitutoyo Measuring Micrometer Head Flat Spindle 0-13mm
Mitutoyo Measuring Micrometer Head Flat Spindle 0-13mm
Mitutoyo Measuring Micrometer Head Flat Spindle 0-13mm
Mitutoyo Measuring Micrometer Head Flat Spindle 0-13mm
Mitutoyo Measuring Micrometer Head Flat Spindle 0-13mm
Mitutoyo Measuring Micrometer Head Flat Spindle 0-13mm
Mitutoyo Measuring Micrometer Head Flat Spindle 0-13mm
Mitutoyo Measuring Micrometer Head Flat Spindle 0-13mm
Mitutoyo Measuring Micrometer Head Flat Spindle 0-13mm
Mitutoyo Measuring Micrometer Head Flat Spindle 0-13mm
Mitutoyo Measuring Micrometer Head Flat Spindle 0-13mm
Mitutoyo Measuring Micrometer Head Flat Spindle 0-13mm

Mitutoyo Measuring Micrometer Head Flat Spindle 0-13mm

No reviews yet Write a Review

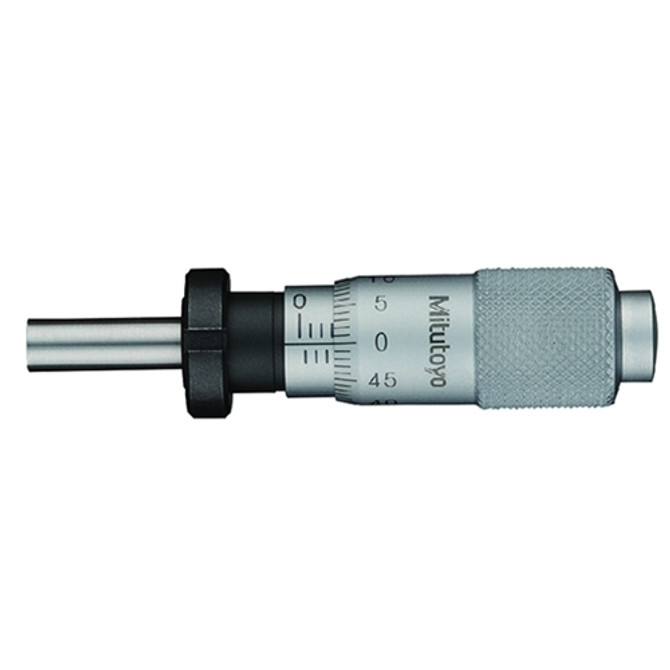

This Mitutoyo common type small size micrometer head has a hard chrome plated scale surface. The small size allows for easy integration into machines while stil…

Read more
SKU:
$88.00 - $102.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

This Mitutoyo common type small size micrometer head has a hard chrome plated scale surface. The small size allows for easy integration into machines while still providing precision measurements. Models with plain stems and stems with a clamp nut are available. This micrometer can be ordered with or without a spindle lock.

  • Range 0-13mm
  • Accuracy +/- 2µm
  • Stem diameter 9.5mm
  • Stem type Plain or with clamp nut. Select when ordering.
  • Spindle face Flat
  • Graduation 0.01mm
  • Spindle pitch 0.5mm

Mitutoyo Part # 148-104, 148-103, 148-121, 148-120
