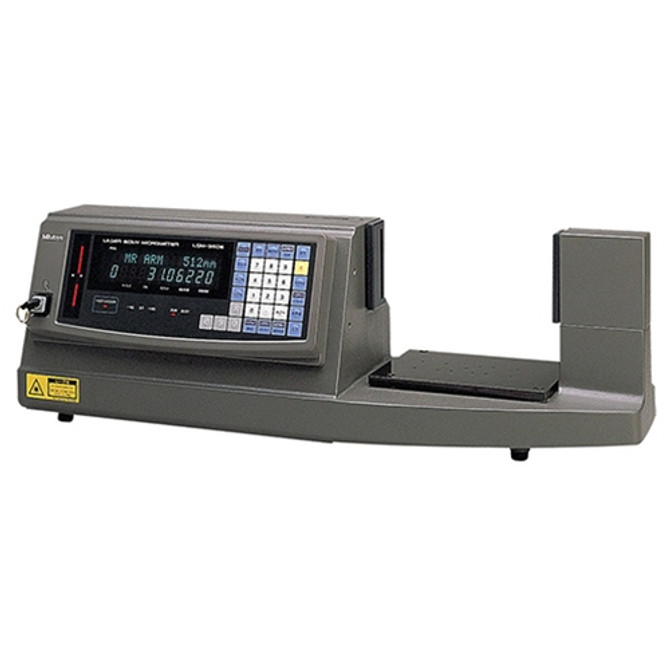

Mitutoyo LSM-9506 Bench Top Display Laser Scan Micrometer

No reviews yet Write a Review
The Mitutoyo LSM-9506 is a laser scan micrometer for bench top with built-in display. This laser scan micrometer integrates the display section and measuring se…

Read more
SKU: 544-116-1A
$11,984.00
Hurry up! Current stock:
Request a quote
Description

The Mitutoyo LSM-9506 is a laser scan micrometer for bench top with built-in display. This laser scan micrometer integrates the display section and measuring section into one unit and was made for bench-top measurements in an inspection room. A statistical calculation function is provided. Standard RS-232C and SPC output interfaces are provided.

Contact Microscope World for information on having this instrument calibrated.

Contact Microscope World for a quote including shipping to your location.

  • Display inch / mm
  • Measuring Range 0.02" - 2.36" (0.5mm - 60mm)
  • Resoultion (selectable) 0.000002 - 0.005" (0.00005 - 0.1mm)
  • Repeatability +/-0.6µm (+/-24µ")
  • Accuracy +/-2.5µm (+/-0.0001")
  • Measuring Area 5x60mm (+/-2x2.36")
  • Scanning Rate 1600 scans/s
  • Laser Wavelength 650nm (visible), IEC Class 2/, FDA Class II
  • Laser Scanning Speed 226m/s
  • Power Supply 120V AC
  • Display Unit Built-in.



Mitutoyo part #: 544-116-1A
NOTE: This item is not returnable.
