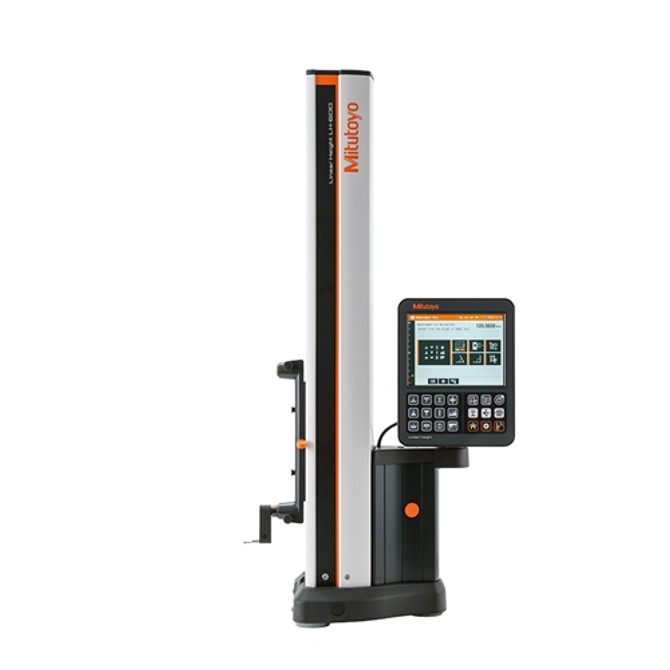

Mitutoyo Linear Height Gage LH-600F 0-38"/0-972mm

This linear height gage provides high performance 2D measurements and has a pneumatic full/semi-floating system which allows for the air-cushion height to be adjusted.

Contact Microscope World for a quote on this item that include freight to your location.

Contact Microscope World for information on having this instrument calibrated.

• Measuring range: 0-38" / 0-977mm
• Slider stroke: 24" / 600mm
• Resolution (switchable): 0.000001" / 0.00001" / 0.0001" / 0.001" or 0.0001 / 0.001 / 0.01 / 0.1mm
• Accuracy at 20ºC
  • Measuring accuracy: (0.000043 + 0.000024 x L*/24)" / (1.1 + 0.6L**/600)µm
  • Repeatability (2s): Plane: 0.000015"/0.4µm Bore: 0.000035" / 0.9µm
  • Perpendicularity: 0.0002" / 5µm
  • Straightness: 0.0002" / 4µm
• Drive method: Motor drive (5, 10, 15, 20, 25, 30, 40mm/s=7 steps) / manual
• Measuring force: 1N
• Balancing method: Counter balance
• Main unit floating method: Full-semi-floating with air
• Air source: built in air compressor
• LCD: TFT LCD (color)
• Language of display: English/German/French/Spanish/Italian/Japanese + more
• Number of programs: 50(max)
• Number of datas: 60,000 (max) 1 program 30,000(max)
• Power supply: AC adapter / Battery (Ni-MH)
• Power consumption: 34VA
• Operation time: Approx. 5 hours
• Standard accessories: Ø5 Eccentric probe (12AAF634), Probe diameter calibration block (12AAA7715), AC adapter (357651), Power cable (02ZAA010), Clear cover (223587), Conveying handle (510434)
• Mass: 24kgs

Mitutoyo part# 518-360-13 (former part# 518-351A-21)
