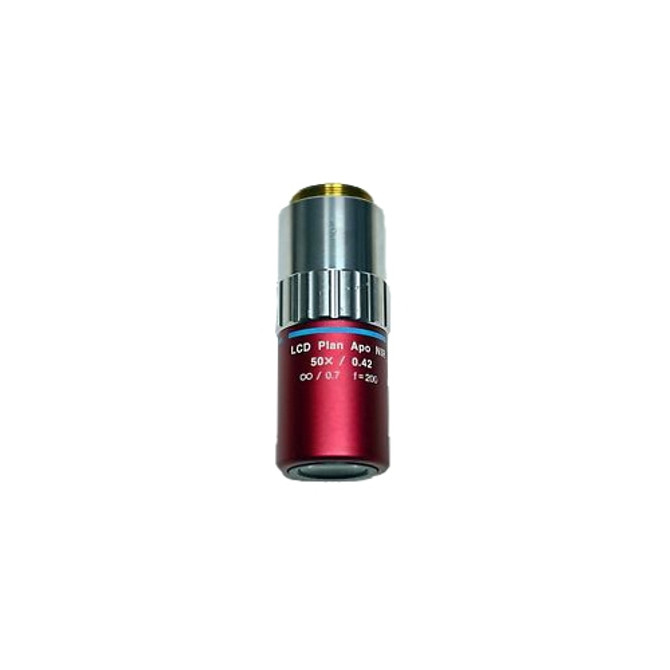

Mitutoyo LCD Plan Apo NIR 50x Objective 0.7 Glass
Mitutoyo LCD Plan Apo NIR 50x Objective 0.7 Glass
Mitutoyo LCD Plan Apo NIR 50x Objective 0.7 Glass

Mitutoyo LCD Plan Apo NIR 50x Objective 0.7 Glass

No reviews yet Write a Review
Infinity corrected, metallurgical brightfield plan apochromat near-infrared radiation range 50x objective long working distance lens. Suitable for laser applica…

Read more
SKU: 378-829-5
Objective Magnification: 50x
$7,908.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

Infinity corrected, metallurgical brightfield plan apochromat near-infrared radiation range 50x objective long working distance lens. Suitable for laser applications. Wavelength correction from visible to near-infrared (1800nm). This lens has glass-thickness compensation and is designed to observe a specimen through glass 0.7mm thick. Lens features include:

  • Magnification 50x
  • Glass Thickness 0.7mm
  • NA 0.42
  • WD 17.26mm
  • Wavelength Range 480nm to 1800nm
  • Suitable YAG Laser Type Fundamental and second and third-harmonic waves
  • Focal Length 3.9mm
  • Resolving Power 0.7µm
  • Depth of Field 1.6µm
  • Real Field of View with Ø24 Eyepiece Ø0.48
  • Real Field of View with 1/2" Chip Camera 0.10 x 0.13
  • Thread Size M26
  • Weight 320g

Mitutoyo Part # = 378-829-5
Note: This item is not returnable.
