Mitutoyo Fine Spindle Feed 0.25mm per Revolution Micrometer Head 0-6.5mm
Mitutoyo Fine Spindle Feed 0.25mm per Revolution Micrometer Head 0-6.5mm
Mitutoyo Fine Spindle Feed 0.25mm per Revolution Micrometer Head 0-6.5mm
Mitutoyo Fine Spindle Feed 0.25mm per Revolution Micrometer Head 0-6.5mm
Mitutoyo Fine Spindle Feed 0.25mm per Revolution Micrometer Head 0-6.5mm
Mitutoyo Fine Spindle Feed 0.25mm per Revolution Micrometer Head 0-6.5mm
Mitutoyo Fine Spindle Feed 0.25mm per Revolution Micrometer Head 0-6.5mm
Mitutoyo Fine Spindle Feed 0.25mm per Revolution Micrometer Head 0-6.5mm
Mitutoyo Fine Spindle Feed 0.25mm per Revolution Micrometer Head 0-6.5mm
Mitutoyo Fine Spindle Feed 0.25mm per Revolution Micrometer Head 0-6.5mm
Mitutoyo Fine Spindle Feed 0.25mm per Revolution Micrometer Head 0-6.5mm
Mitutoyo Fine Spindle Feed 0.25mm per Revolution Micrometer Head 0-6.5mm

Mitutoyo Fine Spindle Feed 0.25mm per Revolution Micrometer Head 0-6.5mm

No reviews yet Write a Review
This Mitutoyo fine spindle feed micrometer head has a spindle fee of 0.25mm per revolution. The scale surface is made of hard chrome plating. Models with plain …

Read more
SKU:
$105.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

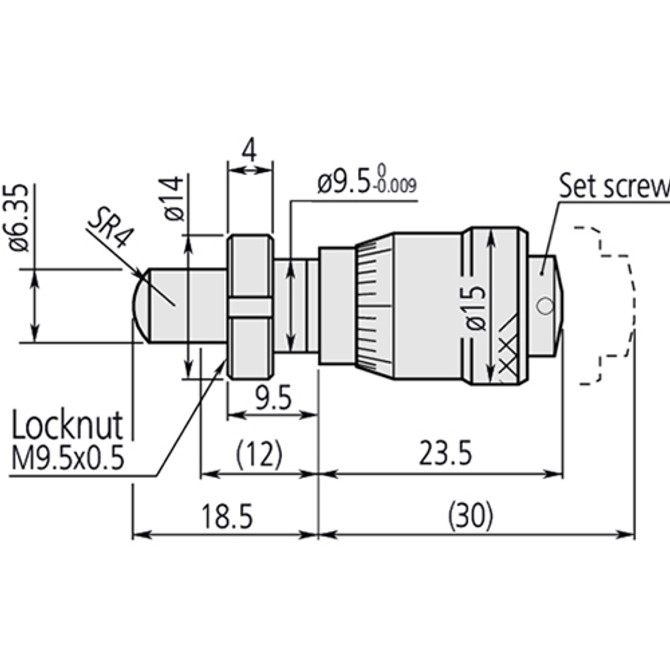

This Mitutoyo fine spindle feed micrometer head has a spindle fee of 0.25mm per revolution. The scale surface is made of hard chrome plating. Models with plain stems and stems with a clamp nut are available.

  • Range 0-6.5mm
  • Accuracy +/- 2µm
  • Graduations 0.01mm
  • Stem diameter 9.5mm
  • Stem type Plain or with clamp nut. Select when ordering.
  • Spindle face Spherical (SR4)
  • Spindle pitch 0.25mm
  • Revolution 0.25mm per revolution

Mitutoyo Part # 148-322, 148-323-10
NOTE: This item is not returnable.
