Mitutoyo Digital Disk Micrometer 0-1" / 0-25.4mm
Mitutoyo Digital Disk Micrometer 0-1" / 0-25.4mm
Mitutoyo Digital Disk Micrometer 0-1" / 0-25.4mm
Mitutoyo Digital Disk Micrometer 0-1" / 0-25.4mm
Mitutoyo Digital Disk Micrometer 0-1" / 0-25.4mm
Mitutoyo Digital Disk Micrometer 0-1" / 0-25.4mm

Mitutoyo Digital Disk Micrometer 0-1" / 0-25.4mm

No reviews yet Write a Review

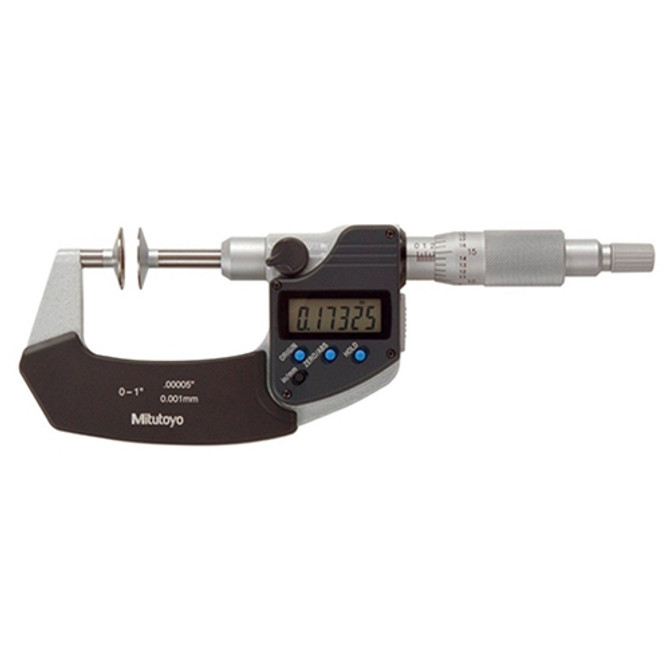

This Mitutoyo digital disk micrometer has a non-rotating spindle and is designed to easily measure root tangent length of spur gears and helical gears. The non-…

Read more
SKU: 369-350-32
$1,010.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

This Mitutoyo digital disk micrometer has a non-rotating spindle and is designed to easily measure root tangent length of spur gears and helical gears. The non-rotating spindle eliminates torque on the workpiece. The ratchet stop provides constant force. Non-slip grip finish.

Contact Microscope World for information on having this instrument calibrated.

  • Range 0-1" / 0-25.4mm
  • Accuracy +/-.0002"
  • Resolution 0.0005" / 0.001mm
  • Diameter of Measuring Disk 0.787"
  • Data Output Yes, use SPC cable with data switch.
  • Display LCD
  • Flatness 0.00004"
  • Parallelism 0.00016"
  • Battery SR44, battery life approximately 1 year under normal use.
  • Functions origin-set, zero/ABS, data hold, data output, inch/mm conversion, function lock, low voltage alarm, counting value composition error alarm.
  • Case includes fitted case.

Mitutoyo Part # = 369-350-32
NOTE: This item is not returnable.
