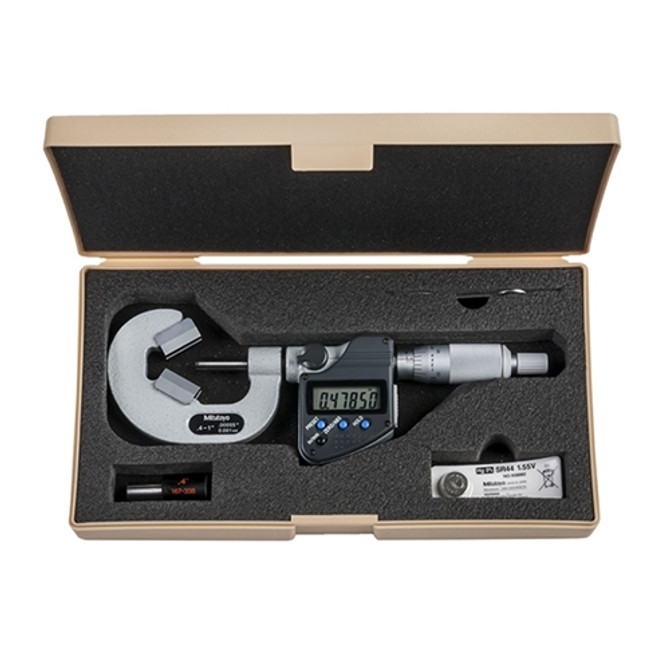

Mitutoyo Digimatic V-Anvil 3 Flutes Micrometer 0.4-1" / 10.16-25.4mm Groove

This Mitutoyo digimatic V-anvil micrometer measures the outside diameter of cutting tools (e.g. taps, reamers, and end mills) with an odd number of flutes for 3 flutes cutting head. Has a centerline groove for measuring pitch diameters of taps, which have a small diameter, by using a single-wire method. Supplied with setting standard, ratchet stop for constant force, an SPC output, and has a non-slip grip finish.

Contact Microscope World for information on having this instrument calibrated.

• Range 0.4-1" / 10.16-25.4mm
• Accuracy ± 0.0002"
• Setting standard ø.4"
• Resolution 0.00005" / 0.001mm
• Spindle face Carbide tipped
• Flatness (spindle/anvil) 0.000012" / 0.3µm, 0.00004" / 1µm
• Data Output Yes, SPC cable with data switch is available
• Display LCD
• Battery SR44, battery life approximately 2.4 years under normal use
• Functions Zero/ABS, data hold, preset, inch/mm conversion (on inch/metric models only), function lock, low voltage alarm, counting value composition error alarm.
• Case Includes fitted plastic case.

Mitutoyo Part # = 314-352-32
NOTE: This item is not returnable.
