Mitutoyo Digimatic Inside Micrometer Extension Rod 200-1,000mm

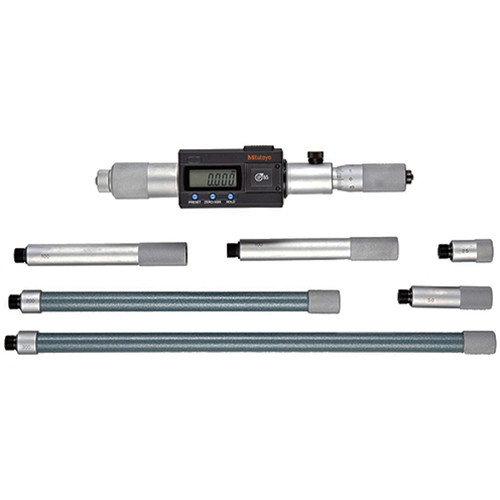

This inside micrometer includes a micrometer head and six extension rods for measuring inside diameters. It features a LCD screen and has a carbide tipped measuring face.  A setting ring can be used to accurately set this micrometer.

Contact Microscope World for information on having this instrument calibrated.

• Overall range 200-1,000mm
• Micrometer head range 200-225mm
• Extension rods 25mm, 50mm, 100mm (2pcs), 200mm, 300mm
• Accuracy +/-(3+n+L/50)µm L= Maximum measuring length(mm) Fraction rounded up. N= Number of rods excluding quantizing error.
• Resolution 0.001mm
• Travel of micrometer head 25mm
• Protection IP65
• Functions Zero-ABS, Data output, Data hold, preset, alarm, low voltage, counting value composition error
• Case Includes a wooden case

 Mitutoyo Part # 337-301
NOTE: This item is not returnable.
