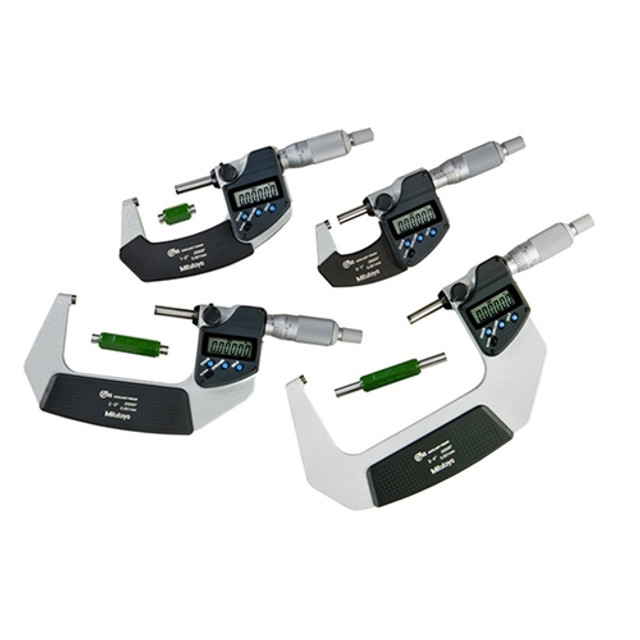

This 4-piece Mitutoyo digital micrometer set includes 4 waterproof micrometers suitable for use in the presence of coolant or cutting oil. The frame of each is stable and incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop provides constant force. Each micrometer has the option for digimatic data output. Oil-resistant materials are used in all plastic components. Certificate of inspection is included. This certificate is undated and therefore can not be used as a calibration certificate.
Contact Microscope World for information on having this instrument calibrated.
- Range 0-25mm / 25-50mm / 50-75mm / 75-100mm
- Accuracy ± 1µm for 0-75mm, ±2µm for 75-100mm
- Resolution 0.001mm
- Data Output Yes, use water resistant SPC cable.
- Display LCD
- Flatness 0.3µm
- Measuring Faces Carbide
- Parallelism 1µm for up to 50mm / 2µm from 50mm-100mm
- Protection IP65
- Battery SR44, battery life approximately 1 year under normal use.
- Functions Origin-set, zero / ABS, hold, auto power on/off, data output, low voltage alarm and counting value composition error alarm.
- Case Includes wooden case and 3 standard bars.
Mitutoyo Part # = 293-963-30
NOTE: This item is not returnable.
