Mitutoyo Carbide Flat Point Stylus for Mu Checker Cartridge Head Probes

Mitutoyo Carbide Flat Point Stylus for Mu Checker Cartridge Head Probes

No reviews yet Write a Review

This flat point stylus fits the Mu checker cartridge head probes 519-331 and 519-348 and is made of carbide. Choose your desired dimensions from the 2 options b…

SKU:

$285.00

Hurry up! Current stock:

Quantity:

Request a quote

Description

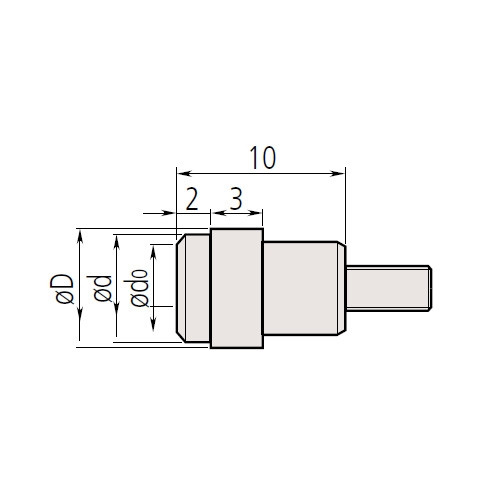

This flat point stylus fits the Mu checker cartridge head probes 519-331 and 519-348 and is made of carbide. Choose your desired dimensions from the 2 options below (refer to the second image above):

Flatness = 3µm
Choose from the following 2 options:
- d₀= Ø3mm/ d = Ø6.4mm/ D = Ø7mm
- d₀= Ø4.5mm/ d = Ø8mm/ D = Ø9mm
Length = 10mm
Thread size = M2.5x0.45 × 5mm

NOTE: This item is not returnable.

Mitutoyo part # 21AZB754, 21AZB755 (previously 137255, 137399)
